MAXIMUM COOLING CAPACITY (L/HOUR)

110

DISPLACEMENT OF RECIRCULATION PUMP (M)

6

NUMBER OF COOLED BEVERAGES

6

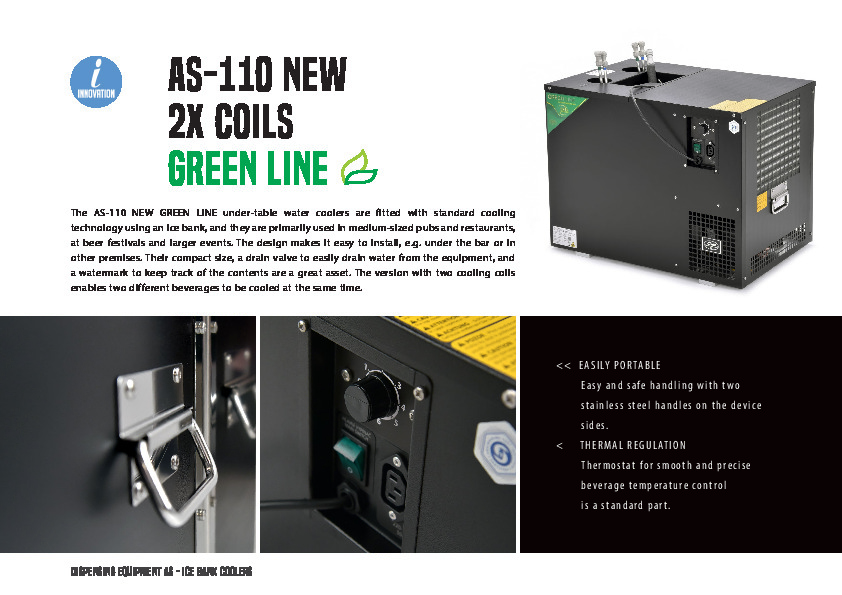

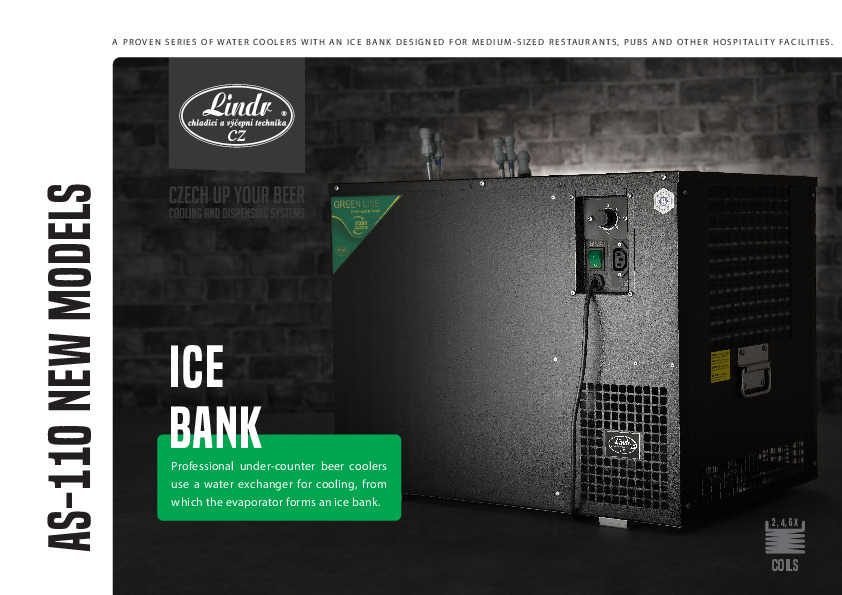

The AS-110 NEW GREEN LINE under-table water coolers are fitted with standard cooling technology using an ice bank, and they are primarily used in medium-sized pubs and restaurants, at beer festivals and larger events. The design makes it easy to install, e.g. under the bar or in other premises. Their compact size, a drain valve to easily drain water from the equipment, and a watermark to keep track of the contents are a great asset. The version with six cooling coils enables six different beverages to be cooled at the same time.

Benefits and useful features

  • INNOVATION – All of our watercoolers undergo continuous development and meet all the latest safety standards and certifications (Czech and European).
  • AS TECHNOLOGY – Water cooling technology with an ice bank, where full ice supply provides maximum cooling performance.
  • PERFORMANCE – The AS NEW GREEN LINE tapping equipment, with its increased continuous output, allows for the continuous serving of quality chilled beverages in quantities corresponding to their numerical marking in litres.
  • AGITATOR PUMP – The cooler incorporates an agitator pump with an aftercooling pump with a discharge of 6 m.
  • GREEN LINE – The LINDR GREEN LINE technology is environmentally friendly thanks to the use of the eco-friendly refrigerant R-290. Thanks to this design, each product achieves 20% higher energy efficiency and 20% lower power consumption.We have introduced an energy saving system in the production.
  • DURABLE SURFACE – The cooler is made of highly durable coated plastic material.
  • CONSTRUCTION AND SERVICE – The modern layout of the cooling technology guarantees easy accessibility for any service and maintenance.
  • EQUIPMENT – Standard features include a thermostat for smooth and precise beverage temperature control, a cooling coil and quick couplers.
  • COMPACT DESIGN – The AS series coolers have the best performance, size and price ratio on the market.
vykres

Technical details

AS-110 6x coils new Green Line

COOLING POWER OF THE COMPRESSOR (HP)

1/3

COOLING POWER OF THE COMPRESSOR (W)

860

MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)

110

CONTINOUS COOLING PERFORMANCE (L/HOUR)

60

THERMAL GRADIENT ΔT(°C)

10

ICE BANK (KG)

10-20

DISPLACEMENT OF RECIRCULATION PUMP (M)

6

RECIRCULATION CONNECTION

1/2

NUMBER OF COOLED BEVERAGES

6

LENGTH OF COOLING COILS (M)

2X14, 2X11, 2X8

DIAMETER OF COOLING COIL (MM)

7X8

POWER (W)

621

AMPERAGE (A)

2,70

NET WEIGHT (KG)

33

REFRIGERANT TYPE

R290

VOLTAGE (V)

220-240V 50Hz~1

BEVERAGE CONNECTION

SPEEDFIT FITTINGS 9,5mm (3/8")

WATER DRAIN WITH WATERMARK

YES

DIGITAL THERMOSTAT

YES

CUSTOMIZED OPTIONS

CHOICE OF TAP

NO

STAINLESS STEEL SCREWING

NO

POWER CABLE PLUG

YES

Advantages AS-110 6x coils new Green Line

THERMAL REGULATION

THERMAL REGULATION

Thermostat for smooth and precise beverage temperature control is a standard part.

DURABLE SURFACE

DURABLE SURFACE

The cooler is made of highly durable coated plastic material.

EASILY PORTABLE

EASILY PORTABLE

Easy and safe handling with two stainless steel handles on the device sides.

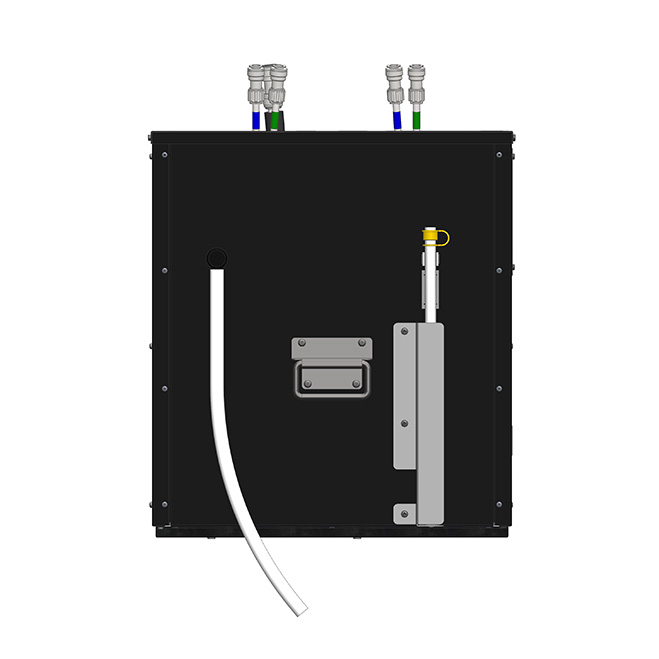

DRAIN VALVE WITH LEVEL GAUGE

DRAIN VALVE WITH LEVEL GAUGE

The cooler is fitted with a drain valve that allows easy draining of water from the unit and the water level gauge to keep track of the level.

DOWNLOAD PRODUCT LIST

Instructions Water AS - video

Undercounter AS coolers

Undercounter beer coolers are always used in combination with the dispense tower. Beer cooler can be placed under the counter in the bar or restaurant area. The water in these machines helps to transfer the cold in the beer lines and also accumulates the cold.
