AS-110 INOX Tropical 2x coils new
Green Line
MAXIMUM COOLING CAPACITY (L/HOUR)
110
DISPLACEMENT OF RECIRCULATION PUMP (M)
6
NUMBER OF COOLED BEVERAGES
2
The AS-110 INOX Tropical NEW GREEN LINE under-table water coolers are fitted with standard cooling technology using an ice bank, and they are primarily used in medium-sized pubs and restaurants, at beer festivals and larger events. AS-110 INOX Tropical features a thickened 45 mm insulation, even on the top cover, and is designed for extreme tropical conditions.This device can fully function even at ambient temperatures of up to 45°C.The design makes it easy to install, e.g. under the bar or in other premises. Their compact size, a drain valve to easily drain water from the equipment, and a water gauge to keep track of the water level are a great asset. The version with two cooling coils enables two different beverages to be cooled at the same time.
Benefits and useful features
- TROPICAL CONDITIONS – AS INOX TROPICAL features a thickened 45 mm insulation, even on the top cover, and is designed for extreme tropical conditions. This device can fully function even at ambient temperatures of up to 45°C.
- INNOVATION – All of our water coolers undergo continuous development and meet all the latest safety standards and certifications (Czech and European).
- AS TECHNOLOGY – Water cooling technology with an ice bank, where full ice supply provides maximum cooling performance.
- OUTPUT – The AS INOX Tropical NEW GREEN LINE tapping equipment, with its increased continuous output, allows for the continuous serving of quality chilled beverages in quantities corresponding to their numerical marking in litres.
- AGITATOR PUMP – The cooler incorporates an agitator pump with an aftercooling pump with a discharge of 6 m.
- GREEN LINE – The LINDR GREEN LINE technology is environmentally friendly thanks to the use of the eco-friendly refrigerant R-290. Thanks to this design, each product achieves 20% higher energy efficiency and 20% lower power consumption.We have introduced an energy saving system in the production.
- CONSTRUCTION AND SERVICE – The modern layout of the cooling technology guarantees easy accessibility for any service and maintenance.
- EQUIPMENT – Standard features include a thermostat for smooth and precise beverage temperature control, a cooling coil and quick couplers.
- COMPACT DESIGN – The AS series coolers have the best output, size and price ratio on the market.
Technical details
AS-110 INOX Tropical 2x coils new Green Line
COOLING POWER OF THE COMPRESSOR (HP)
1/3
COOLING POWER OF THE COMPRESSOR (W)
860
MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)
110
CONTINOUS COOLING PERFORMANCE (L/HOUR)
60
THERMAL GRADIENT ΔT(°C)
10
ICE BANK (KG)
10-20
DISPLACEMENT OF RECIRCULATION PUMP (M)
6
RECIRCULATION CONNECTION
1/2
NUMBER OF COOLED BEVERAGES
2
LENGTH OF COOLING COILS (M)
2X14,0
DIAMETER OF COOLING COIL (MM)
7X8
POWER (W)
621
AMPERAGE (A)
2,70
NET WEIGHT (KG)
34.0
REFRIGERANT TYPE
R290
VOLTAGE (V)
220-240V 50Hz~1
BEVERAGE CONNECTION
SPEEDFIT FITTINGS 9,5mm (3/8")
WATER DRAIN WITH WATERMARK
YES
DIGITAL THERMOSTAT
YES
CUSTOMIZED OPTIONS
CHOICE OF TAP
NO
STAINLESS STEEL SCREWING
NO
POWER CABLE PLUG
YES
Advantages AS-110 INOX Tropical 2x coils new Green Line
TROPICAL CONDITIONS
AS INOX TROPICAL features a thickened 45 mm insulation, even on the top cover, and is designed for extreme tropical conditions. This device can fully function even at ambient temperatures of up to 45°C.

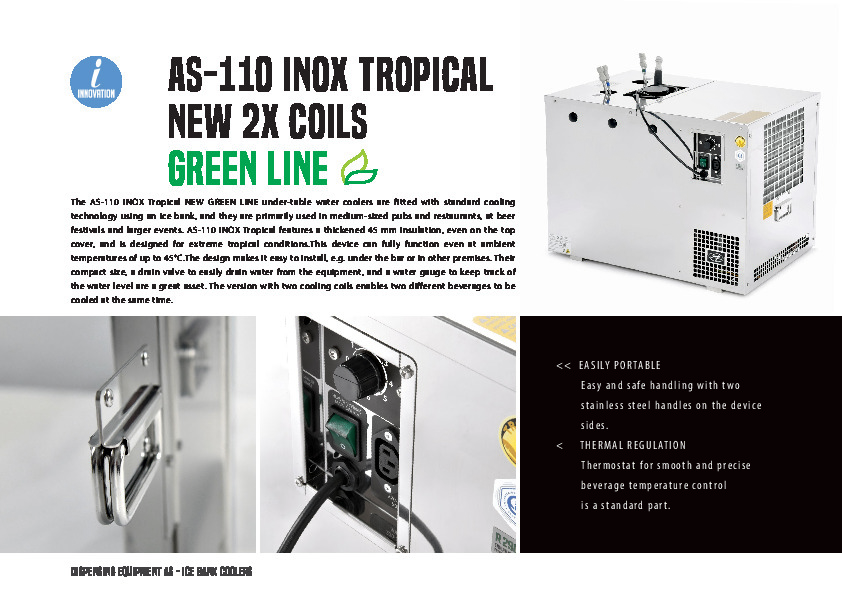

EASILY PORTABLE
Easy and safe handling with two stainless steel handles on the device sides.
DRAIN VALVE WITH LEVEL GAUGE
The cooler is fitted with a drain valve that allows easy draining of water from the unit and the water level gauge to keep track of the level.
THERMAL REGULATION
Thermostat for smooth and precise beverage temperature control is a standard part.
DOWNLOAD PRODUCT LIST
Instructions Water AS - video
Undercounter AS coolers
Undercounter beer coolers are always used in combination with the dispense tower. Beer cooler can be placed under the counter in the bar or restaurant area. The water in these machines helps to transfer the cold in the beer lines and also accumulates the cold.
