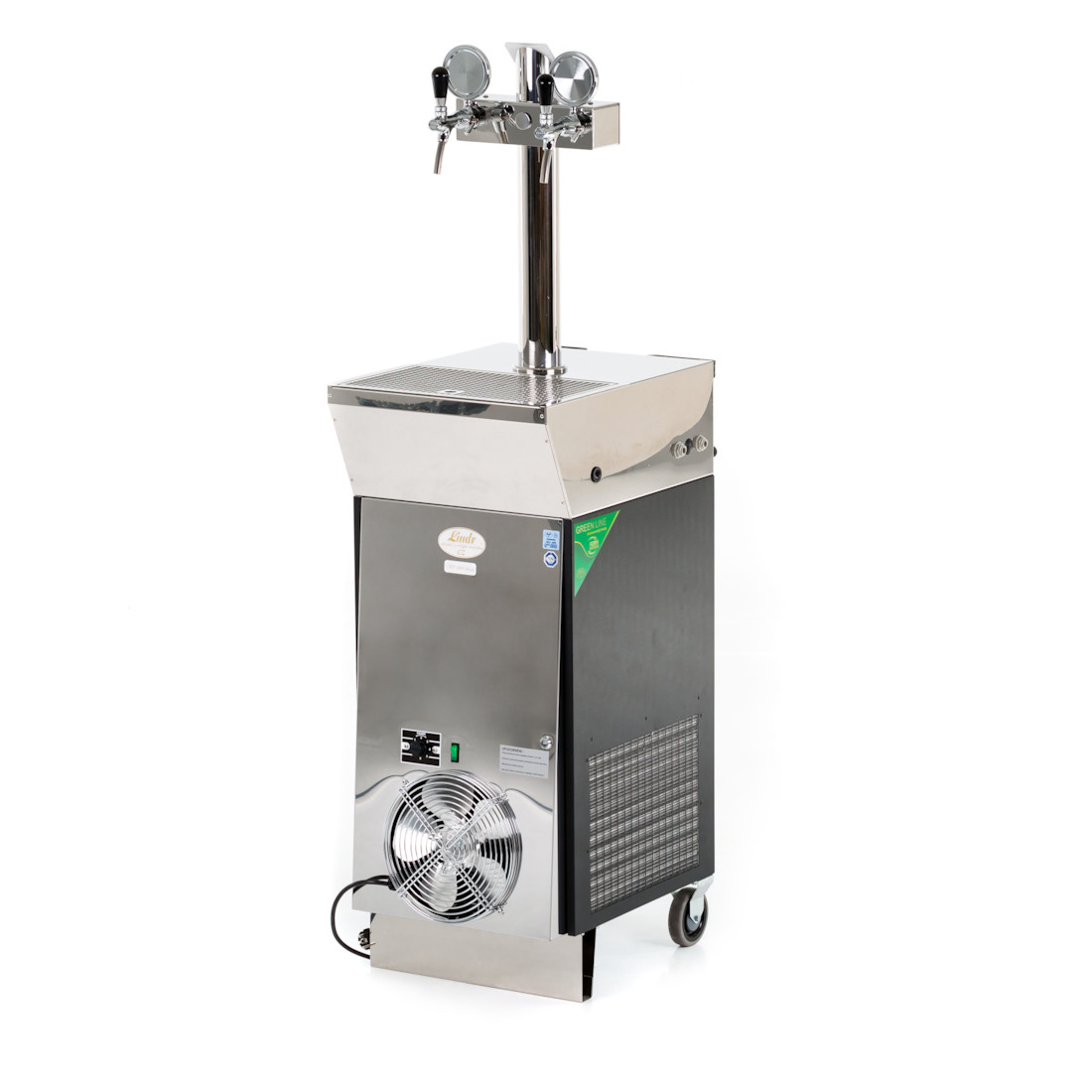

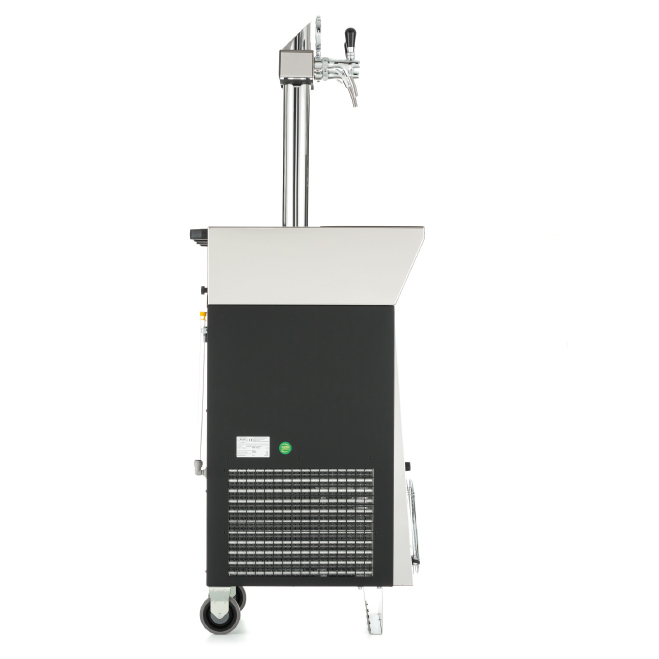

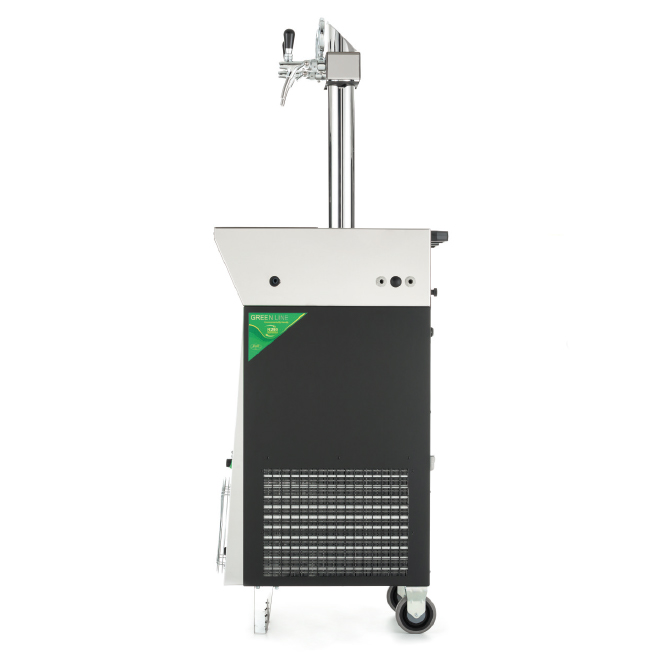

CWP 300 mobil 2x tap
Green Line
MAXIMUM COOLING CAPACITY (L/HOUR)
200
DISPLACEMENT OF RECIRCULATION PUMP (M)
6
NUMBER OF COOLED BEVERAGES
2

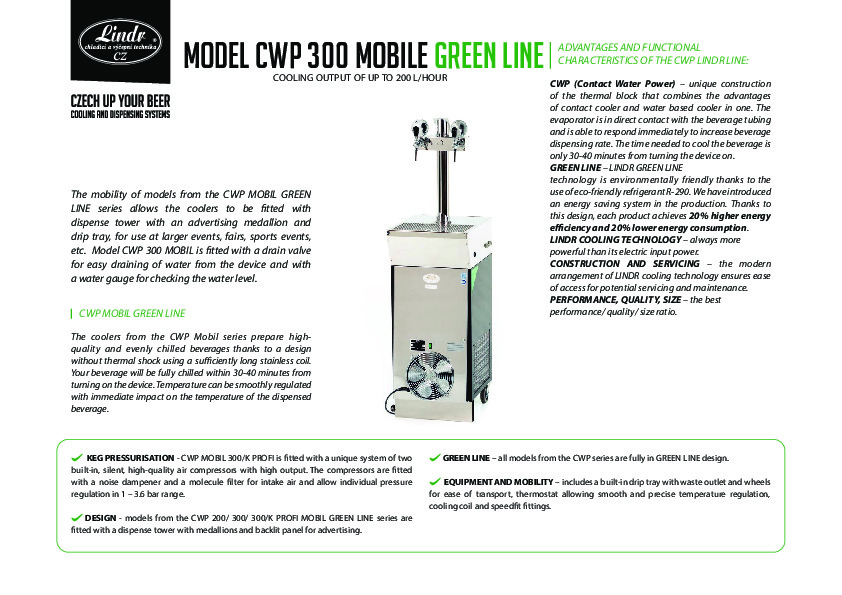

The mobility of models from the CWP MOBIL GREEN LINE series allows the coolers to be fitted with dispense tower with an advertising medallion and drip tray, for use at larger events, fairs, sports events, etc. Model CWP 300 MOBIL is fitted with a drain valve for easy draining of water from the device and with a water gauge for checking the water level.
Benefits and useful features
- DESIGN - The model CWP 300 MOBIL GREEN LINE series is fitted with a dispense tower with medallions and backlit panel for advertising.
- EQUIPMENT AND MOBILITY – includes a built-in drip tray with waste outlet and wheels for ease of transport, thermostat allowing smooth and precise temperature regulation, cooling coil and speedfit fittings.
- CWP (Contact Water Power) – unique construction of the thermal block that combines the advantages of contact cooler and water based cooler in one. The evaporator is in direct contact with the beverage tubing and is able to respond immediately to increase beverage dispensing rate. The time needed to cool the beverage is only 30-40 minutes from turning the device on.
- GREEN LINE – LINDR GREEN LINE technology is environmentally friendly thanks to the use of eco-friendly refrigerant R-290. Thanks to this design, each product achieves 20 % higher energy efficiency and 20 % lower energy consumption. We have introduced an energy saving system in the production.
- LINDR COOLING TECHNOLOGY – always more powerful than its electric input power.
- CONSTRUCTION AND SERVICING – the modern arrangement of LINDR cooling technology ensures ease of access for potential servicing and maintenance.
- PERFORMANCE, QUALITY, SIZE – the best performance/ quality/ size ratio.

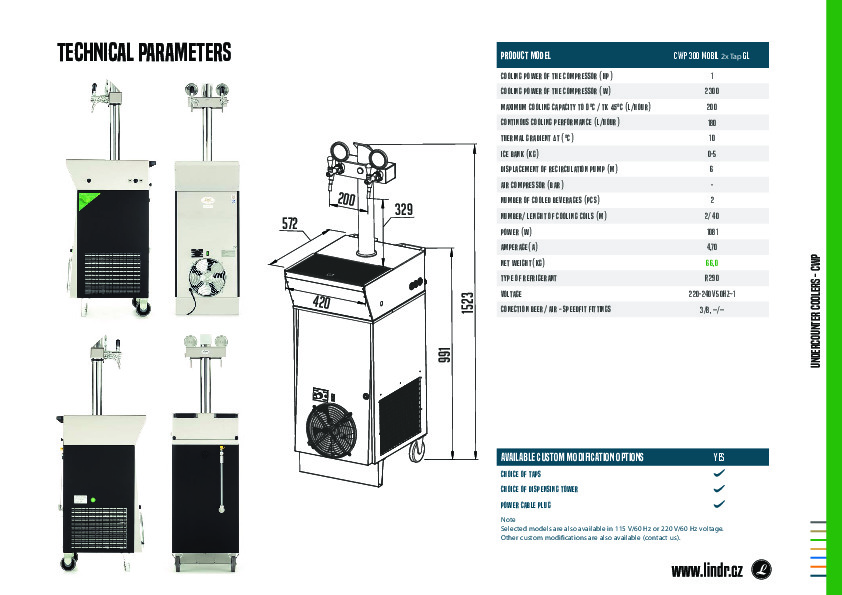

Technical details
CWP 300 mobil 2x tap Green Line
COOLING POWER OF THE COMPRESSOR (HP)
1
COOLING POWER OF THE COMPRESSOR (W)
2300
MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)
200
CONTINOUS COOLING PERFORMANCE (L/HOUR)
180
THERMAL GRADIENT ΔT(°C)
10
AIR COMPRESSOR
NO
ICE BANK (KG)
0-5
DISPLACEMENT OF RECIRCULATION PUMP (M)
6
NUMBER OF TAPS
2
NUMBER OF COOLED BEVERAGES
2
LENGTH OF COOLING COILS (M)
2x40
DIAMETER OF COOLING COIL (MM)
7x8
POWER (W)
1081
AMPERAGE (A)
4,70
NET WEIGHT (KG)
66.0
REFRIGERANT TYPE
R290
VOLTAGE (V)
220-240V 50Hz~1
BEVERAGE CONNECTION
SPEEDFIT FITTINGS 9,5mm (3/8")
WATER DRAIN WITH WATERMARK
YES
DIGITAL THERMOSTAT
YES
CUSTOMIZED OPTIONS
CHOICE OF TAP
YES
CHOICE OF TAP
YES
STAINLESS STEEL SCREWING
YES
POWER CABLE PLUG
YES
Advantages CWP 300 mobil 2x tap Green Line
EASY MOVABLE
Thanks to solid wheels and handles is cooler easy movable.
DRIP TRAY
Inbuilt drip tray with discharge hose is optimal equipment for the beer events.
FAST COOLING
The time needed to cool the beverage is only 30-40 minutes from turning the device on.
PRACTICAL DOOR
Allows easy access for service and maintenance.
DOWNLOAD PRODUCT LIST
Instructions Water CWP - video
Undercounter coolers CWP
Undercounter beer coolers are always used in combination with the dispense tower. Beer cooler can be placed under a dispensing bar or anywhere in the bar or restaurant area. The water in these machines helps to transfer the cold on the beer lines and also accumulates the cold.
