MAXIMUM COOLING CAPACITY (L/HOUR)

200

DISPLACEMENT OF RECIRCULATION PUMP (M)

8

NUMBER OF COOLED BEVERAGES

6

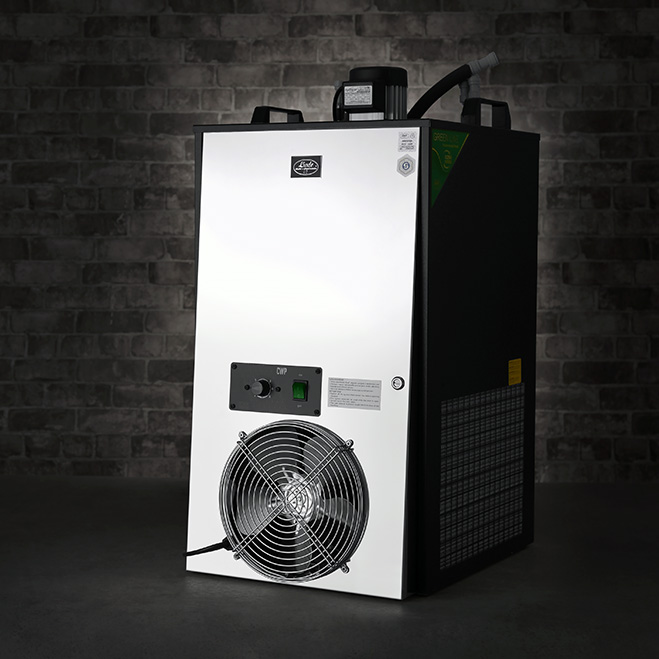

The CWP 300 GREEN LINE undercounter cooler is a professional device combining the advantages of contact and water coolers by using direct evaporator energy to cool the beverage line, offering constant operation without the use of an ice supply. Thanks to these features, the device can be cooled down quickly while maintaining a constant temperature at increased flow rates. The number of loops indicates the number of drinks that can be chilled at the same time. We pride ourselves on quality workmanship and perfect design, but also on high performance with compact dimensions.

Benefits and useful features

  • INNOVATION – All our coolers undergo continuous development and meet all the latest safety standards and certifications (Czech and European).
  • CWP TECHNOLOGY – CWP stands for Contact Water Power. It is a unique thermoblock design, developed by our company, that combines the advantages of dry contact and water coolers. The evaporator is in direct contact with the beverage line and can react immediately to increased beverage flow. The time needed for cooling is only about 30–40 minutes from turning on the device.
  • GREEN LINE – LINDR GREEN LINE technology is environmentally friendly thanks to the use of the environmentally friendly refrigerant R-290. Thanks to this design, each product achieves 20% higher energy efficiency and 20% lower electricity consumption. In its production we carry out systemic energy saving.
  • PERFORMANCE – CWP NEW GREEN LINE enables, thanks to the increased continuous output, the dispensing of quality chilled beverages in quantities corresponding to their numerical designation in litres.
  • NUMBER OF COILS - The cooler enables dispensing up to six different beverages.
  • CONSTRUCTION AND SERVICE – The modern layout of the cooling technology guarantees easy accessibility for service and maintenance.
  • ACCESSORIES – A thermostat for smooth and precise beverage temperature control, a cooling coil and speed fittigns are standard parts.
  • TOTAL COMPATIBILITY – CWP line coolers have the best performance, size and price ratio on the market.
vykres

Technical details

CWP 300 6x Coils NEW GREEN LINE

COOLING POWER OF THE COMPRESSOR (HP)

1

COOLING POWER OF THE COMPRESSOR (W)

2360

MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)

200

CONTINOUS COOLING PERFORMANCE (L/HOUR)

180

THERMAL GRADIENT ΔT(°C)

10

ICE BANK (KG)

0-5

DISPLACEMENT OF RECIRCULATION PUMP (M)

8

RECIRCULATION CONNECTION

1/2

NUMBER OF COOLED BEVERAGES

6

LENGTH OF COOLING COILS (M)

4X20, 2X14,5

DIAMETER OF COOLING COIL (MM)

7X8

POWER (W)

1081

AMPERAGE (A)

4,70

NET WEIGHT (KG)

47.5

REFRIGERANT TYPE

R290

VOLTAGE (V)

220-240V 50Hz~1

BEVERAGE CONNECTION

SPEEDFIT FITTINGS 9,5mm (3/8")

WATER DRAIN WITH WATERMARK

YES

DIGITAL THERMOSTAT

YES

CUSTOMIZED OPTIONS

CHOICE OF TAP

NO

STAINLESS STEEL SCREWING

NO

POWER CABLE PLUG

YES

Advantages CWP 300 6x Coils NEW GREEN LINE

LINDR THERMOBLOCK

LINDR THERMOBLOCK

A modern compressor cooling unit using input energy for direct conversion to cold, thus guaranteeing minimum energy consumption. Quality chilled beer is served faster than with classic ice bank coolers.

PRACTICAL DOOR

PRACTICAL DOOR

Allows easy access for service and maintenance.

THERMAL REGULATION

THERMAL REGULATION

Thermostat for smooth and precise beverage temperature control is a standard part.

DRAIN VALVE WITH WATERMARK

DRAIN VALVE WITH WATERMARK

The cooler is equipped with a drain valve that allows easy draining of water from the unit and a watermark to see the liquid level.

DOWNLOAD PRODUCT LIST

Instructions Water CWP - video

Undercounter coolers CWP

Undercounter beer coolers are always used in combination with the dispense tower. Beer cooler can be placed under a dispensing bar or anywhere in the bar or restaurant area. The water in these machines helps to transfer the cold on the beer lines and also accumulates the cold.
