SODA AS-110
Green Line

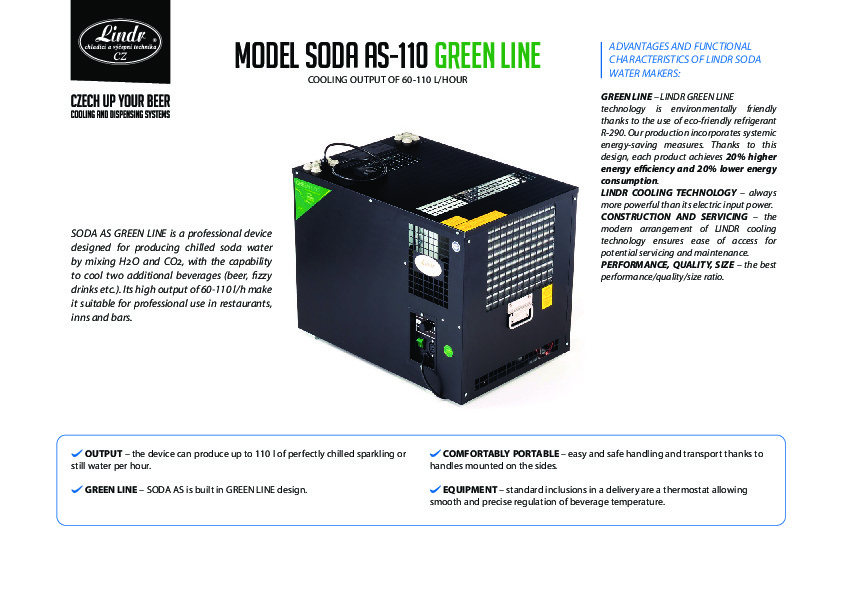

SODA AS 110 GREEN LINE is a professional device designed for producing chilled soda water by mixing H2O and CO2, with the capability to cool two additional beverages (beer, fizzy drinks etc.). Its high output of 60-110 l/h make it suitable for professional use in restaurants, inns and bars.
Benefits and useful features
- COMFORTABLY PORTABLE – easy and safe handling and transport thanks to handles mounted on the sides.
- OUTPUT – the device can produce up to 110 l of perfectly chilled sparkling or still water per hour.
- EQUIPMENT – standard inclusions in a delivery are a thermostat allowing smooth and precise regulation of beverage temperature.
- GREEN LINE – LINDR GREEN LINE technology is environmentally friendly thanks to the use of eco-friendly refrigerant R-290. Thanks to this design, each product achieves 20 % higher energy efficiency and 20 % lower energy consumption. We have introduced an energy saving system in the production.
- LINDR COOLING TECHNOLOGY – always more powerful than its electric input power.
- CONSTRUCTION AND SERVICING – the modern arrangement of LINDR cooling technology ensures ease of access for potential servicing and maintenance.
- PERFORMANCE, QUALITY, SIZE – the best performance/ quality/ size ratio.
![vykres](/storage/helios/image/609f4a642b607c65a52048c40637a24c.png)

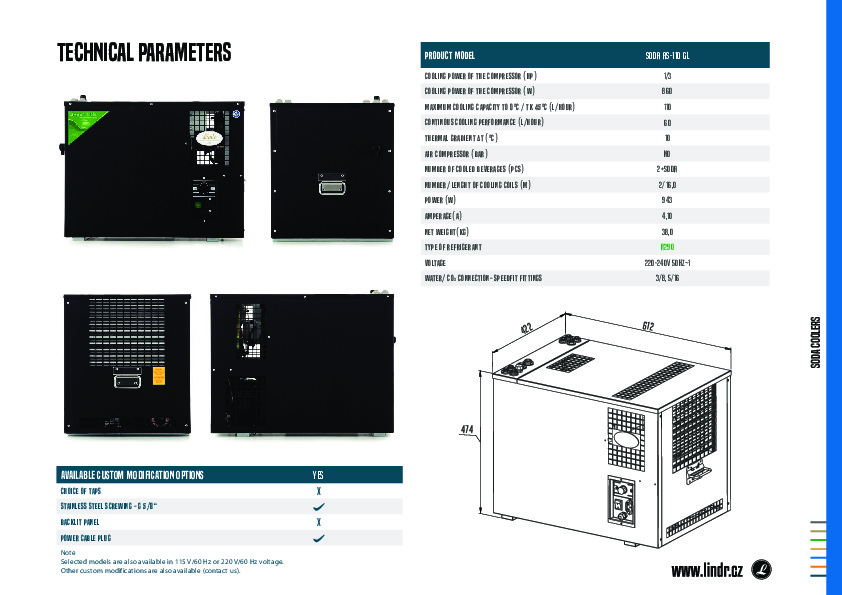

Technical details
SODA AS-110 Green Line
COOLING POWER OF THE COMPRESSOR (HP)
1/3
COOLING POWER OF THE COMPRESSOR (W)
860
MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)
110
CONTINOUS COOLING PERFORMANCE (L/HOUR)
60
THERMAL GRADIENT ΔT(°C)
10
AIR COMPRESSOR
NO
ICE BANK (KG)
10-20
NUMBER OF COOLED BEVERAGES
3
CARBONATED WATER (L/HOUR)
60-110
LENGTH OF COOLING COILS (M)
2x16,0
POWER (W)
943
AMPERAGE (A)
4,10
NET WEIGHT (KG)
38.0
REFRIGERANT TYPE
R290
VOLTAGE (V)
220-240V 50Hz~1
BEVERAGE CONNECTION
SPEEDFIT FITTINGS 9,5mm (3/8")
CO2 CONNECTION
Speedfit 8mm (5/16")
CUSTOMIZED OPTIONS
CHOICE OF TAP
NO
STAINLESS STEEL SCREWING
YES
MOTIVE OF LIGHTING PANEL
NO
POWER CABLE PLUG
YES
Advantages SODA AS-110 Green Line
![EASY PORTABLE](/storage/helios/image/be3645e178d02a81b3dbfb15a31da420.jpg)
EASY PORTABLE
Easy and safe handling and transport thanks to handles mounted on the sides.
![THERMAL REGULATION](/storage/helios/image/c41a7722e585ff8ac7452e9c4d9ea627.jpg)
THERMAL REGULATION
Thermostat allowing smooth and precise regulation of beverage temperature.
![FAST CONNECTION](/storage/helios/image/80afbdbecde424295cfb2a360746e64d.jpg)
FAST CONNECTION
Easy installation thanks to speed push fittings located on the lid.
