SODA AS-40
Green Line

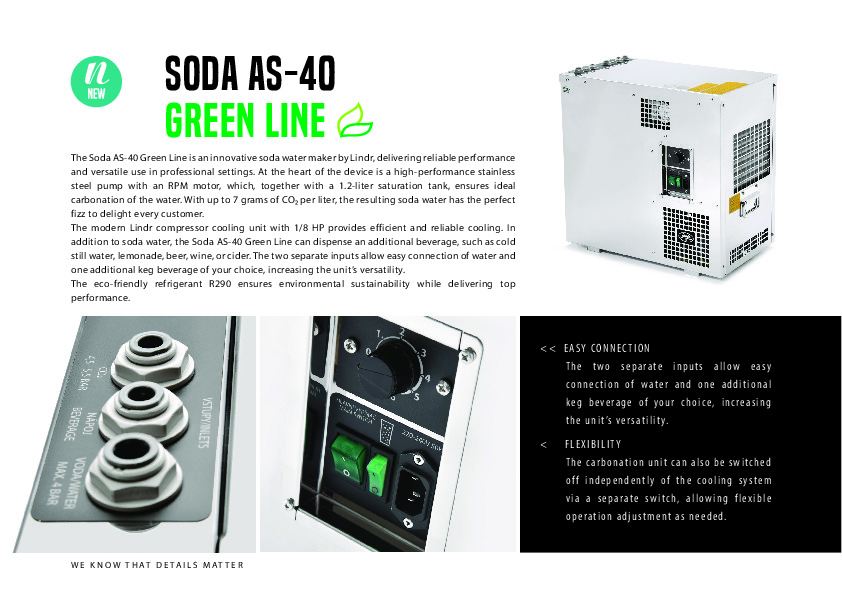

The Soda AS-40 Green Line is an innovative soda water maker by Lindr, delivering reliable performance and versatile use in professional settings. At the heart of the device is a high-performance stainless steel pump with an RPM motor, which, together with a 1.2-liter saturation tank, ensures ideal carbonation of the water. With up to 7 grams of CO₂ per liter, the resulting soda water has the perfect fizz to delight every customer.
Benefits and useful features
- INNOVATION – Lindr pushes the boundaries of beverage cooling, delivering innovative solutions that enhance performance, efficiency, and ease of use. With modern technology, a compact design, and an eco-friendly approach, Lindr responds to the needs of today’s establishments by providing reliable and practical cooling systems.
- COMPACT DESIGN – Thanks to its compact under-counter design, the Soda AS-40 Green Line easily integrates into any setting. Its recirculation pump maintains stable drink temperatures up to 1.2 meters in height, enabling flexible draft system configurations.
- PERFORMANCE AND FLEXIBILITY – The Soda AS-40 Green Line delivers high performance and versatile applications for various operational settings. Its high-power stainless steel pump and high volume saturation tank ensure carbonation up to 7 grams of CO₂ per liter, producing up to 45 liters of perfectly fizzy soda water per hour. A dedicated switch for the carbonation unit allows it to be turned off independently from the cooling system, providing operational flexibility as needed.
- REINFORCED INSULATION – With 3 cm of insulation, the device effectively prevents condensation on its surface in humid environments and improves energy efficiency. This feature makes the Soda AS-40 Green Line an ideal choice for operations in tropical regions.
- GREEN LINE – The LINDR GREEN LINE technology is environmentally friendly, utilizing eco-friendly R-290 refrigerant. This design allows each product to achieve 20% higher energy efficiency and 20% lower electricity consumption. Our manufacturing process also incorporates systematic energy savings.
- EASY MAINTENANCE – Designed for easy maintenance, the device features a removable fan for simple condenser cleaning, while the rotary pump, saturation tank, and electronics are modular and can be removed independently, greatly facilitating service and maintenance.
Technical details
SODA AS-40 Green Line
COOLING POWER OF THE COMPRESSOR (HP)
1/8
COOLING POWER OF THE COMPRESSOR (W)
310
MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)
45
CONTINOUS COOLING PERFORMANCE (L/HOUR)
25
THERMAL GRADIENT ΔT(°C)
10
ICE BANK (KG)
4-8
NUMBER OF COOLED BEVERAGES
Soda+1
CARBONATED WATER (L/HOUR)
25-45
LENGTH OF COOLING COILS (M)
1X11, 1X6
POWER (W)
644
AMPERAGE (A)
2,80
NET WEIGHT (KG)
28.0
REFRIGERANT TYPE
R290
VOLTAGE (V)
220-240V 50Hz~1
BEVERAGE CONNECTION
WATER 9,5mm (3/8“), DRINK 8mm (5/16“)
CO2 CONNECTION
Speedfit 8mm (5/16")
DRINK OUTPUT
WATER 9,5mm (3/8“), DRINK 8mm (5/16“)
CUSTOMIZED OPTIONS
CHOICE OF TAP
NO
STAINLESS STEEL SCREWING
NO
MOTIVE OF LIGHTING PANEL
NO
POWER CABLE PLUG
YES
