SODA KONTAKT 70 GREEN LINE is a professional device designed for producing chilled soda water by mixing H2O and CO2, also for producing chilled beverage like water, lemonade, beer, wine nad cider. Its high output of up to 70 l/h make it suitable for professional use in restaurants, inns and bars.

Benefits and useful features

  • INNOVATION – All our coolers are constantly evolving and meet all the latest safety standards and certifications (Czech and European).
  • PERFORMANCE – The soda makers, with their increased continuous output, enable the continuous serving of high-quality chilled beverages in quantities corresponding to their numbering in liters.
  • GREEN LINE – LINDR GREEN LINE technology is environmentally friendly thanks to the use of eco-friendly refrigerant R-290. Thanks to this design, each product achieves 20 % higher energy efficiency and 20 % lower energy consumption. We have introduced an energy saving system in the production.
  • CONSTRUCTION AND SERVICE – The modern layout of the cooling technology guarantees easy accessibility for any service and maintenance.
  • OVERALL COMPACTNESS – soda makers have the best ratio of performance, size and price on the market.
  • EASY TO CARRY - Easy and safe handling and transport thanks to handles mounted on the top.
vykres

Technical details

SODA Kontakt 70 Green Line

COOLING POWER OF THE COMPRESSOR (HP)

1/3

COOLING POWER OF THE COMPRESSOR (W)

860

MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)

90

CONTINOUS COOLING PERFORMANCE (L/HOUR)

70

THERMAL GRADIENT ΔT(°C)

10

NUMBER OF COOLED BEVERAGES

Soda+1

CARBONATED WATER (L/HOUR)

70-90

LENGTH OF COOLING COILS (M)

2X18

POWER (W)

828

AMPERAGE (A)

3,60

NET WEIGHT (KG)

36.0

REFRIGERANT TYPE

R290

VOLTAGE (V)

220-240V 50Hz~1

BEVERAGE CONNECTION

SPEEDFIT FITTINGS 9,5mm (3/8")

CO2 CONNECTION

Speedfit 8mm (5/16")

CUSTOMIZED OPTIONS

CHOICE OF TAP

NO

STAINLESS STEEL SCREWING

NO

MOTIVE OF LIGHTING PANEL

NO

POWER CABLE PLUG

YES

Advantages SODA Kontakt 70 Green Line

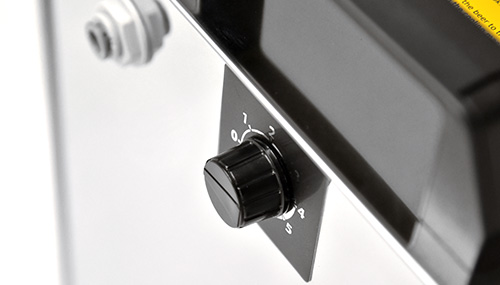

THERMAL REGULATION

THERMAL REGULATION

Thermostat for smooth and precise beverage temperature control is a standard part.

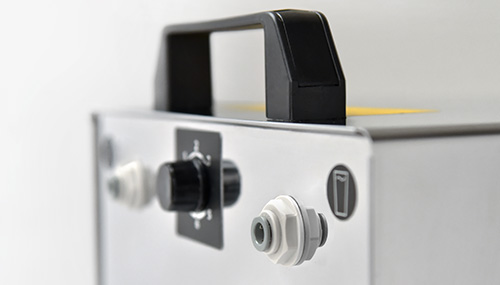

EASY TO CARRY

EASY TO CARRY

Easy and safe handling and transport thanks to handles mounted on the top.

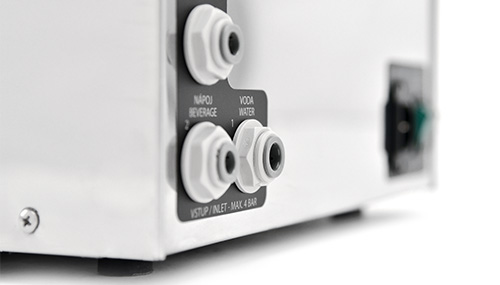

EASY CONNECTION

EASY CONNECTION

easy installation thanks to fittings located on the cooler.
