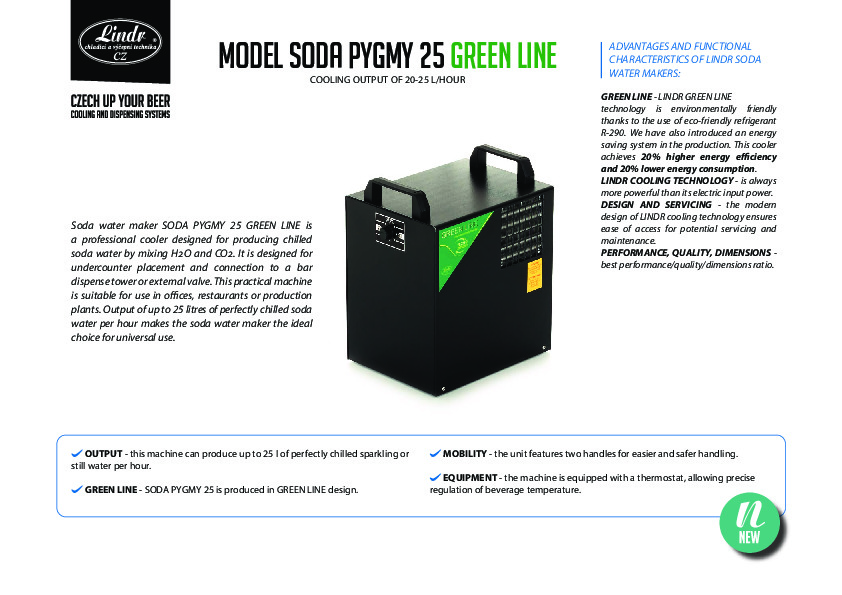

Soda water maker SODA PYGMY 25 GREEN LINE is a professional cooler designed for producing chilled soda water by mixing H2O and CO2. It is designed for undercounter placement and connection to a bar dispense tower or external valve. This practical machine is suitable for use in offices, restaurants or production plants. Output of up to 25 litres of perfectly chilled soda water per hour makes the soda water maker the ideal choice for universal use.

Benefits and useful features

  • OUTPUT - this machine can produce up to 25 l of perfectly chilled sparkling or still water per hour.
  • MOBILITY - the unit features two handles for easier and safer handling.
  • EQUIPMENT - the machine is equipped with a thermostat, allowing precise regulation of beverage temperature
  • GREEN LINE - LINDR GREEN LINE technology is environmentally friendly thanks to the use of eco-friendly refrigerant R-290. We have also introduced an energy saving system in the production. This cooler achieves 20% higher energy efficiency and 20% lower energy consumption.
  • LINDR COOLING TECHNOLOGY - is always more powerful than its electric input power.
  • DESIGN AND SERVICING - the modern design of LINDR cooling technology ensures ease of access for potential servicing and maintenance.
  • PERFORMANCE, QUALITY, DIMENSIONS - best performance/ quality/ dimensions ratio.

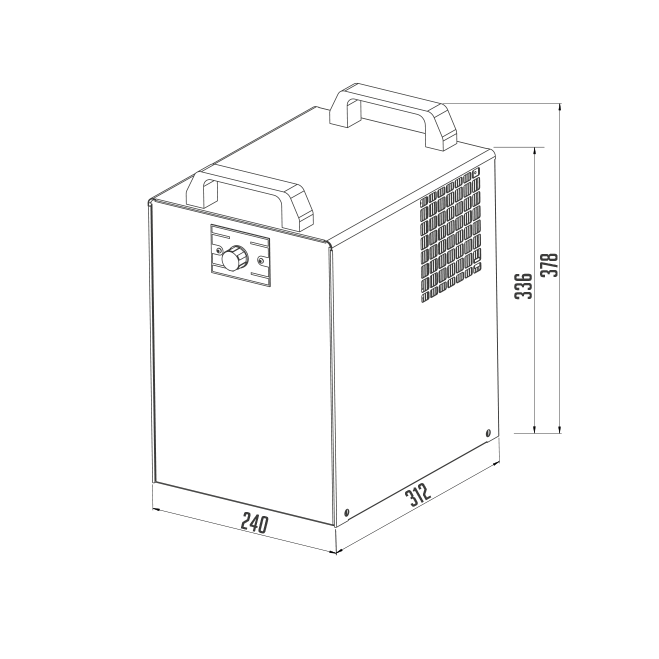

vykres

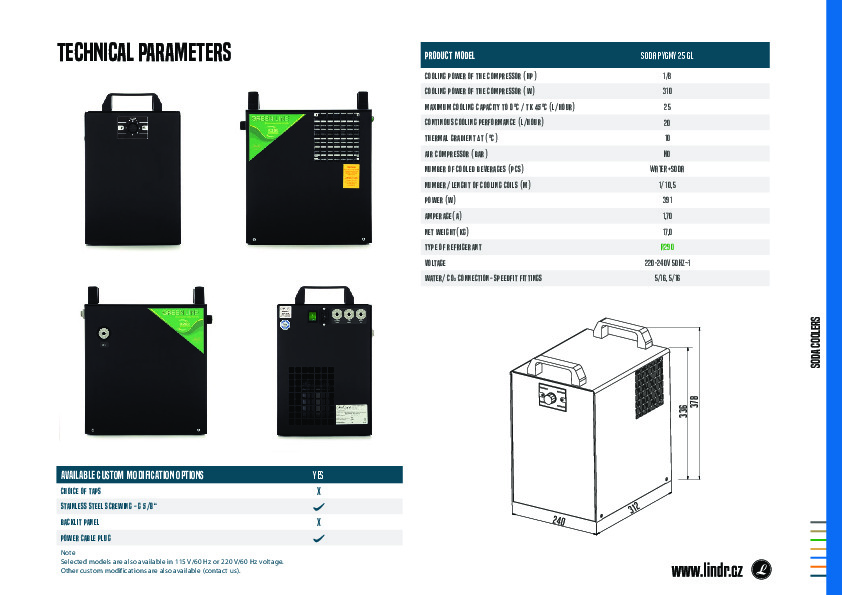

Technical details

SODA PYGMY 25 Green Line

COOLING POWER OF THE COMPRESSOR (HP)

1/8

COOLING POWER OF THE COMPRESSOR (W)

310

MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)

25

CONTINOUS COOLING PERFORMANCE (L/HOUR)

20

THERMAL GRADIENT ΔT(°C)

10

AIR COMPRESSOR

NO

NUMBER OF COOLED BEVERAGES

2

CARBONATED WATER (L/HOUR)

20-25

LENGTH OF COOLING COILS (M)

10,5

POWER (W)

391

AMPERAGE (A)

1,70

NET WEIGHT (KG)

17.0

REFRIGERANT TYPE

R290

VOLTAGE (V)

220-240V 50Hz~1

BEVERAGE CONNECTION

5/16

CO2 CONNECTION

Speedfit 8mm (5/16")

CUSTOMIZED OPTIONS

CHOICE OF TAP

NO

STAINLESS STEEL SCREWING

YES

MOTIVE OF LIGHTING PANEL

NO

POWER CABLE PLUG

YES

Advantages SODA PYGMY 25 Green Line

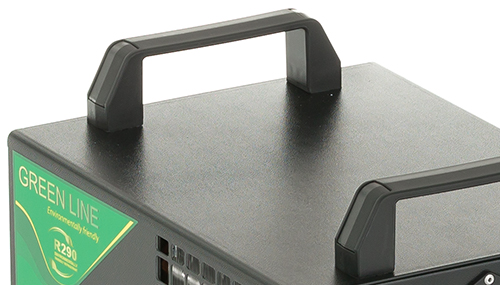

COMFORTABLY PORTABLE

COMFORTABLY PORTABLE

Ease and safety of handling is maintained thanks to the system's relatively small size and two handles located on top.

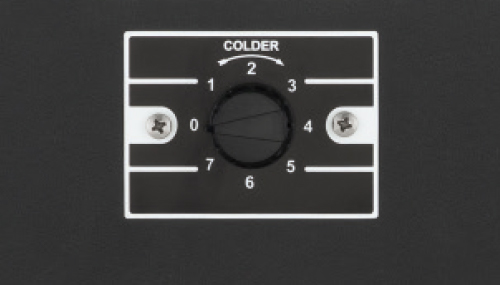

THERMAL REGULATION

THERMAL REGULATION

Thermostat allowing smooth and precise regulation of beverage temperature.

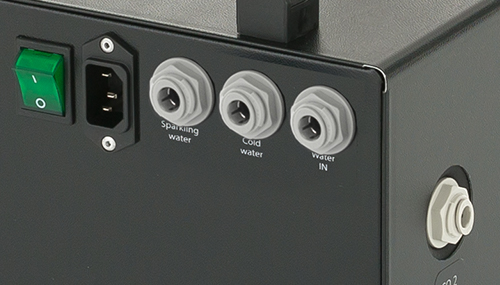

FAST CONNECTION

FAST CONNECTION

Easy installation thanks to speed push fittings located on the cabinet.
