AS-40 2X COILS NEW
Green Line
MAXIMUM COOLING CAPACITY (L/HOUR)
40
DISPLACEMENT OF RECIRCULATION PUMP (M)
1,2
NUMBER OF COOLED BEVERAGES
2

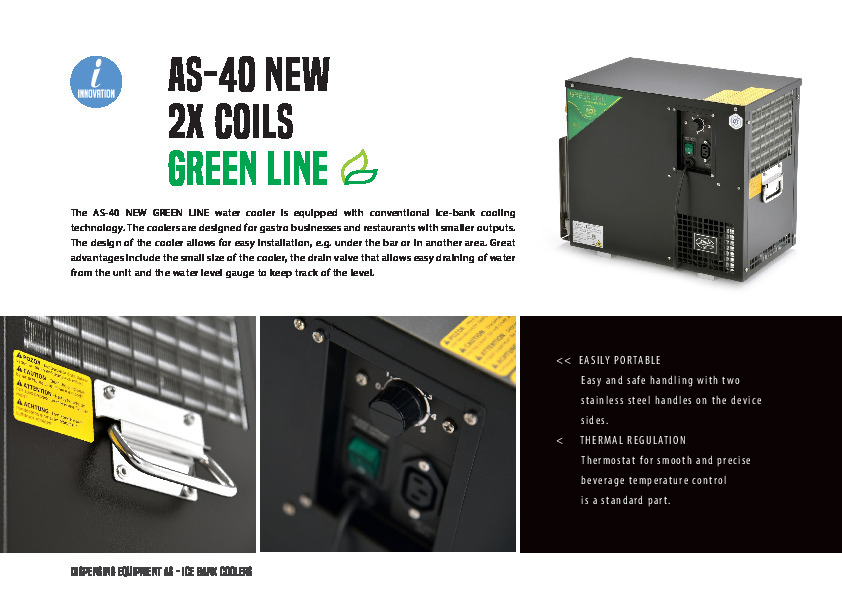

The AS-40 NEW GREEN LINE water cooler is equipped with conventional ice-bank cooling technology. The coolers are designed for gastro businesses and restaurants with smaller outputs. The design of the cooler allows for easy installation, e.g. under the bar or in another area. Great advantages include the small size of the cooler, the drain valve that allows easy draining of water from the unit and the water level gauge to keep track of the level.
Benefits and useful features
- INNOVATION – All of our contact coolers undergo continuous development and meet all the latest safety standards and certifications (Czech and European).
- AS TECHNOLOGY – Water cooling technology with an ice bank, where full ice supply provides maximum cooling performance.
- OUTPUT – The AS-40 NEW GREEN LINE tapping equipment, with its increased continuous output, allows for the continuous serving of quality chilled beverages in quantities corresponding to their numerical marking in litres.
- IMMERSION PUMP – The built-in stirrer ensures an even temperature throughout the water bath. If required, the stirrer can be modified and used as an aftercooling pump with a discharge of 1.2 m.
- GREEN LINE – The LINDR GREEN LINE technology is environmentally friendly thanks to the use of the eco-friendly refrigerant R-290. Thanks to this design, each product achieves 20% higher energy efficiency and 20% lower power consumption. We have introduced an energy saving system in the production.
- CONSTRUCTION AND SERVICE – The modern layout of the cooling technology guarantees easy accessibility for any service and maintenance.
- EQUIPMENT – Standard features include a thermostat for smooth and precise beverage temperature control, a cooling loop and quick couplers.
- COMPACT DESIGN – The AS series coolers have the best performance, size and price ratio on the market.
Technical details
AS-40 2X COILS NEW GREEN LINE
COOLING POWER OF THE COMPRESSOR (HP)
1/8
COOLING POWER OF THE COMPRESSOR (W)
310
MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)
40
CONTINOUS COOLING PERFORMANCE (L/HOUR)
25
THERMAL GRADIENT ΔT(°C)
10
ICE BANK (KG)
4-8
DISPLACEMENT OF RECIRCULATION PUMP (M)
1,2
NUMBER OF TAPS
2
NUMBER OF COOLED BEVERAGES
2
LENGTH OF COOLING COILS (M)
8/8
DIAMETER OF COOLING COIL (MM)
7X8
POWER (W)
322
AMPERAGE (A)
1,40
NET WEIGHT (KG)
17.5
REFRIGERANT TYPE
R290
VOLTAGE (V)
220-240V 50Hz~1
BEVERAGE CONNECTION
SPEEDFIT FITTINGS 9,5mm (3/8")
WATER DRAIN WITH WATERMARK
YES
DIGITAL THERMOSTAT
YES
CUSTOMIZED OPTIONS
CHOICE OF TAP
NO
STAINLESS STEEL SCREWING
NO
POWER CABLE PLUG
YES
Advantages AS-40 2X COILS NEW GREEN LINE
THERMAL REGULATION
Thermostat for smooth and precise beverage temperature control is a standard part.
DURABLE SURFACE
The cooler is made of highly durable coated plastic material.
EASILY PORTABLE
Easy and safe handling with two stainless steel handles on the device sides.
DRAIN VALVE WITH LEVEL GAUGE
The cooler is fitted with a drain valve that allows easy draining of water from the unit and the water level gauge to keep track of the level.
DOWNLOAD PRODUCT LIST
Instructions Water AS - video
Undercounter AS coolers
Undercounter beer coolers are always used in combination with the dispense tower. Beer cooler can be placed under the counter in the bar or restaurant area. The water in these machines helps to transfer the cold in the beer lines and also accumulates the cold.
