AS-110-us
Green Line
MAXIMUM COOLING CAPACITY (L/HOUR)
110
DISPLACEMENT OF RECIRCULATION PUMP (M)
6
NUMBER OF COOLED BEVERAGES
2

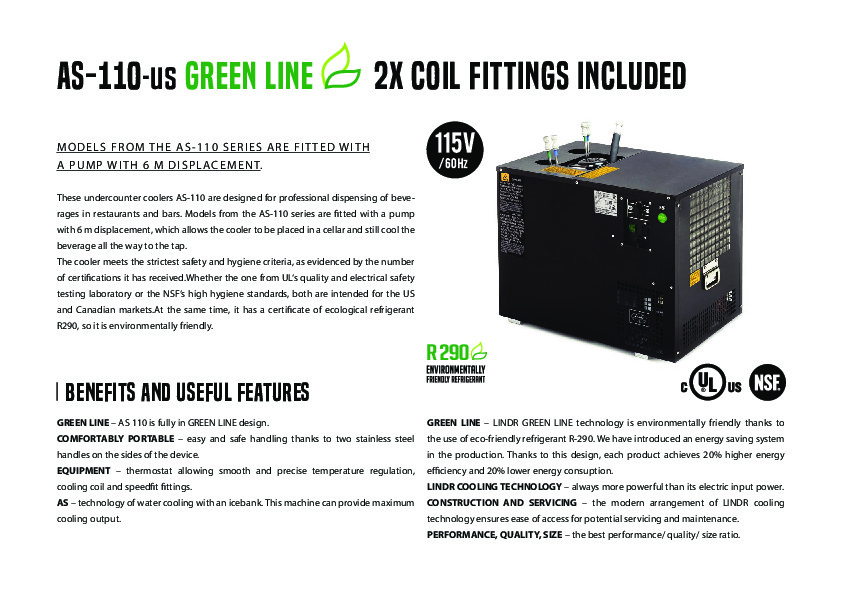

These undercounter coolers AS-110 are designed for professional dispensing of beverages in restaurants and bars. Models from the AS-110 series are fitted with a pump with 6 m displacement, which allows the cooler to be placed in a cellar and still cool the beverage all the way to the tap.
Benefits and useful features
- GREEN LINE – AS 110 is fully in GREEN LINE design.
- COMFORTABLY PORTABLE – easy and safe handling thanks to two stainless steel handles on the sides of the device.
- EQUIPMENT – thermostat allowing smooth and precise temperature regulation, cooling coil and speedfit fittings.
- AS – technology of water cooling with an icebank. This machine can provide maximum cooling output
- GREEN LINE – LINDR GREEN LINE technology is environmentally friendly thanks to the use of eco-friendly refrigerant R-290. Thanks to this design, each product achieves 20 % higher energy efficiency and 20 % lower energy consumption. We have introduced an energy saving system in the production.
- LINDR COOLING TECHNOLOGY – always more powerful than its electric input power
- CONSTRUCTION AND SERVICING – the modern arrangement of LINDR cooling technology ensures ease of access for potential servicing and maintenance.
- PERFORMANCE, QUALITY, SIZE – the best performance/ quality/ size ratio
- CERTIFICATE - The cooler meets the strictest safety and hygiene criteria, as evidenced by the number of certifications it has received.Whether the one from UL's quality and electrical safety testing laboratory or the NSF's high hygiene standards, both are intended for the US and Canadian markets.At the same time, it has a certificate of ecological refrigerant R290, so it is environmentally friendly.

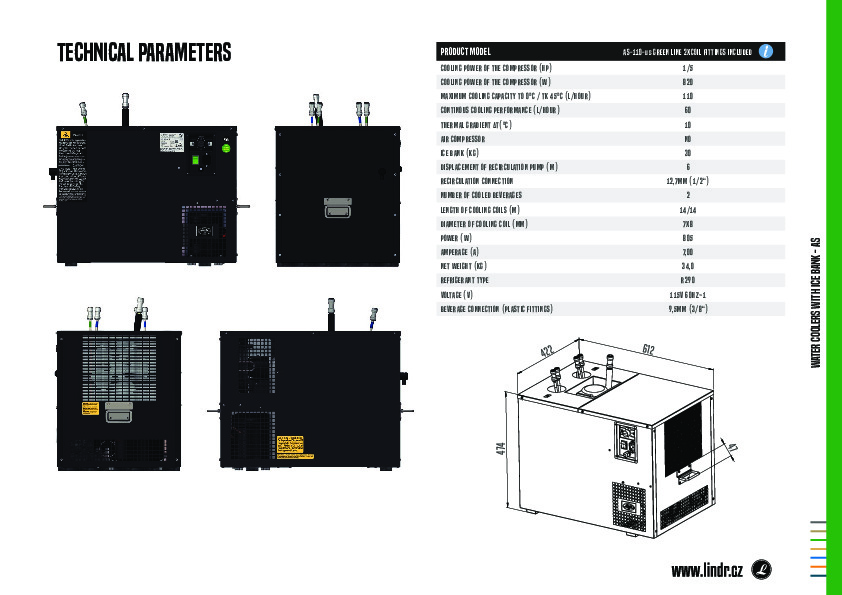

Technical details
AS-110-us Green Line
COOLING POWER OF THE COMPRESSOR (HP)
1/5
COOLING POWER OF THE COMPRESSOR (W)
820
MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)
110
CONTINOUS COOLING PERFORMANCE (L/HOUR)
60
THERMAL GRADIENT ΔT(°C)
10
ICE BANK (KG)
30
DISPLACEMENT OF RECIRCULATION PUMP (M)
6
RECIRCULATION CONNECTION
12,7mm (1/2")
NUMBER OF COOLED BEVERAGES
2
LENGTH OF COOLING COILS (M)
2x14
DIAMETER OF COOLING COIL (MM)
7x8
POWER (W)
805
AMPERAGE (A)
7,0
NET WEIGHT (KG)
34
REFRIGERANT TYPE
R290
VOLTAGE (V)
115V 60Hz~1
BEVERAGE CONNECTION
SPEEDFIT FITTINGS 9,5mm (3/8")
WATER DRAIN WITH WATERMARK
NO
DIGITAL THERMOSTAT
NO
CUSTOMIZED OPTIONS
CHOICE OF TAP
NO
STAINLESS STEEL SCREWING
NO
DIAMETER OF COOLING COIL (10X0,5 MM)
NO
POWER CABLE PLUG
NO
Advantages AS-110-us Green Line
THERMAL REGULATION
Thermostat allowing smooth and precise regulation of beverage temperature.
COMFORTABLY PORTABLE
Easy and safe handling providing two stainless steel handles on the device sides.
CONNECTION
Easy connection of drink and re-cooling with the speed fittings.
CERTIFICATIONS
The cooler meets the strictest safety and hygiene criteria, as evidenced by the number of certifications it has received.Whether the one from UL's quality and electrical safety testing laboratory or the NSF's high hygiene standards, both are intended for the US and Canadian markets.At the same time, it has a certificate of ecological refrigerant R290, so it is environmentally friendly.
DOWNLOAD PRODUCT LIST
Instructions Water AS - video
Undercounter AS coolers
Undercounter beer coolers are always used in combination with the dispense tower. Beer cooler can be placed under the counter in the bar or restaurant area. The water in these machines helps to transfer the cold in the beer lines and also accumulates the cold.
