Kontakt 60/K Vision
Green Line
MAXIMUM COOLING CAPACITY (L/HOUR)
60
AIR COMPRESSOR
YES
NUMBER OF COOLED BEVERAGES
2

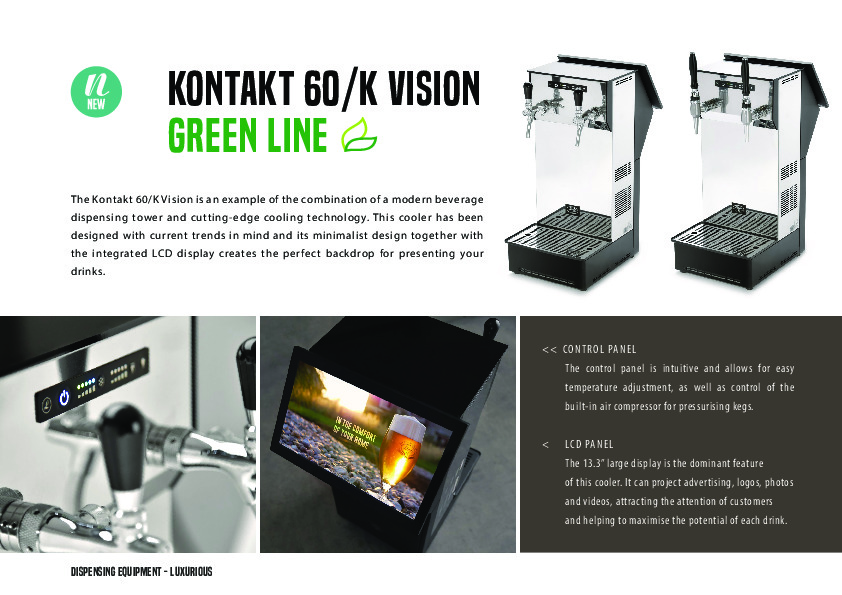

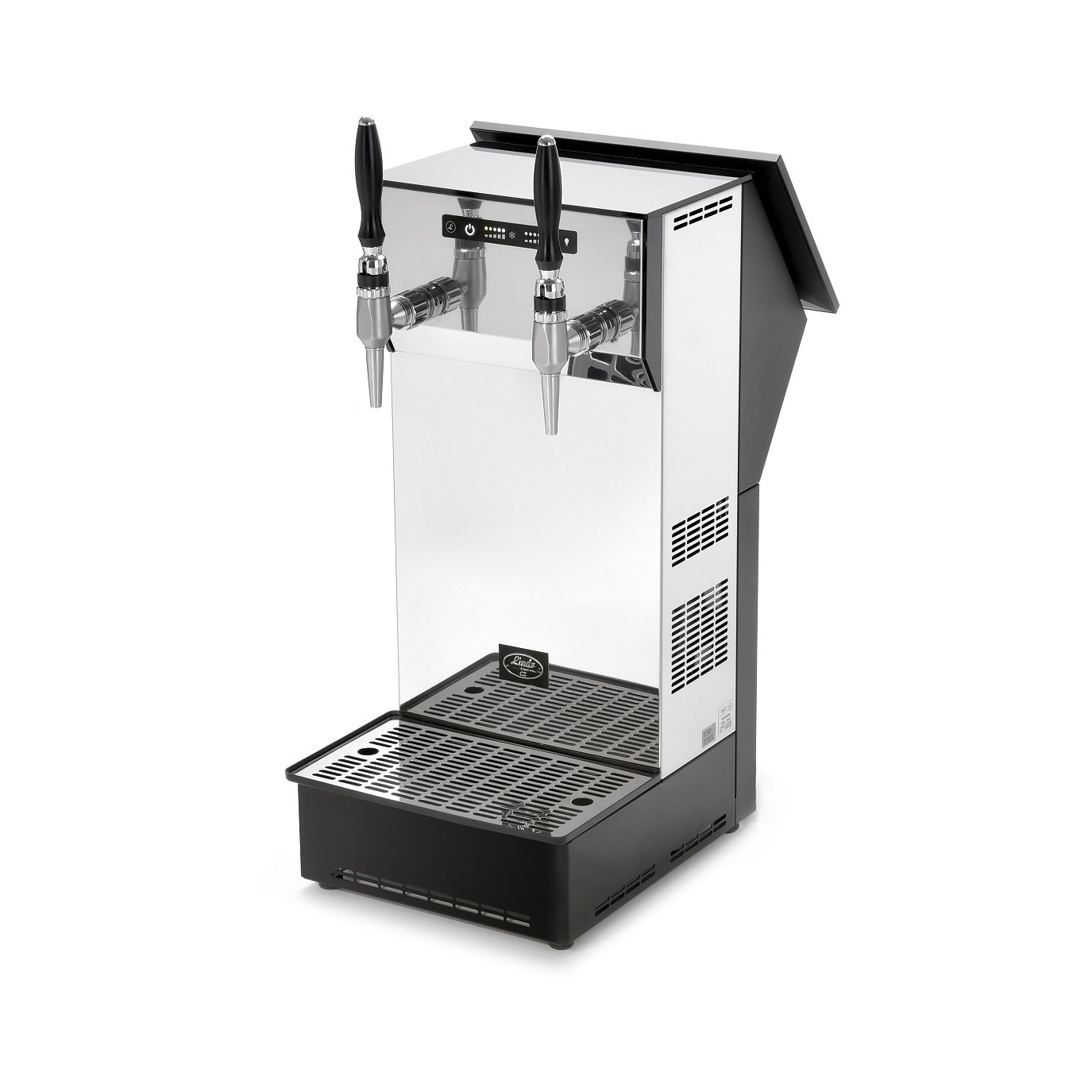

The Kontakt 60/K Vision is an example of the combination of a modern beverage dispensing tower and cutting-edge cooling technology. This cooler has been designed with current trends in mind and its minimalist design together with the integrated LCD display creates the perfect backdrop for presenting your drinks.
Benefits and useful features
- LCD DISPLAY - The 13.3” large display is the dominant feature of this cooler. It can project advertising, logos, photos and videos, attracting the attention of customers and helping to maximise the potential of each drink.
- COOLED TAP - Thanks to the function of after-cooling up to the tap, the drink is perfectly chilled from the first drop that hits the glass, making the cooler a suitable device for dispensing drinks even in small quantities.
- OUTPUT - With an output of 60 l/h, it is not afraid of demanding operation.
- SIMPLE OPERATION - The control panel is intuitive and elegant and allows for easy temperature adjustment, as well as control of the built-in air compressor.
- BUILT-IN DRIP TRAY - The smart design with built-in drip tray allows for easy cleaning and servicing, which you will appreciate during regular maintenance.
- AIR COMPRESSOR - Cooling includes a built-in air compressor with a particulate filter.
- EASY TAP REPLACEMENT - Thanks to the use of 5/8” threads, changing taps has never been easier.
- GREEN LINE – LINDR GREEN LINE technology is environmentally friendly thanks to the use of eco-friendly refrigerant R-290. Thanks to this design, each product achieves 20 % higher energy efficiency and 20 % lower energy consumption. We have introduced an energy saving system in the production.
Technical details
Kontakt 60/K Vision Green Line
COOLING POWER OF THE COMPRESSOR (HP)
1/5
COOLING POWER OF THE COMPRESSOR (W)
570
MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)
60
CONTINOUS COOLING PERFORMANCE (L/HOUR)
50
THERMAL GRADIENT ΔT(°C)
10
AIR COMPRESSOR
YES
AIR COMPRESSOR PRESSURE (BAR)
regulace 1,7-3,5
NUMBER OF TAPS
2
NUMBER OF COOLED BEVERAGES
2
LENGTH OF COOLING COILS (M)
2X18,0
DIAMETER OF COOLING COIL (MM)
7X8
POWER (W)
439
AMPERAGE (A)
1,90
NET WEIGHT (KG)
34.0
REFRIGERANT TYPE
R290
VOLTAGE (V)
220-240V 50Hz~1
BEVERAGE CONNECTION
SPEEDFIT FITTINGS 9,5mm (3/8")
AIR CONNECTION
SPEEDFIT FITTINGS 8mm (5/16")
CUSTOMIZED OPTIONS
CHOICE OF TAP
YES
AIR CONNECTION SCREWING
NO
STAINLESS STEEL SCREWING
NO
MOTIVE OF LIGHTING PANEL
YES
POWER CABLE PLUG
YES
Advantages Kontakt 60/K Vision Green Line
LCD DISPLAY
The 13.3” large display can project advertising, logos, photos and videos.
COOLED TAP
Thanks to the function of after-cooling up to the tap, the drink is perfectly chilled from the first drop that hits the glass, making the cooler a suitable device for dispensing drinks even in small quantities.
SIMPLE OPERATION
The control panel is intuitive and elegant and allows for easy temperature adjustment, as well as control of the built-in air compressor.
BUILT-IN DRIP TRAY
The smart design with built-in drip tray allows for easy cleaning and servicing, which you will appreciate during regular maintenance.
INSTALATION SPEED
Thanks to the use of 5/8” threads, changing taps has never been easier.
DOWNLOAD PRODUCT LIST
Instructions Luxurious - video
Luxury dry coolers
The luxury range is designed for demanding customers with specific requirements for the design. We use wooden accessories for some types of dispensing equipment.
Contact 60/K Vision
Introduction of Kontakt 60/K Vision.
