SOUDEK 35 new
Green Line
MAXIMUM COOLING CAPACITY (L/HOUR)
40
AIR COMPRESSOR
NO
NUMBER OF COOLED BEVERAGES
1

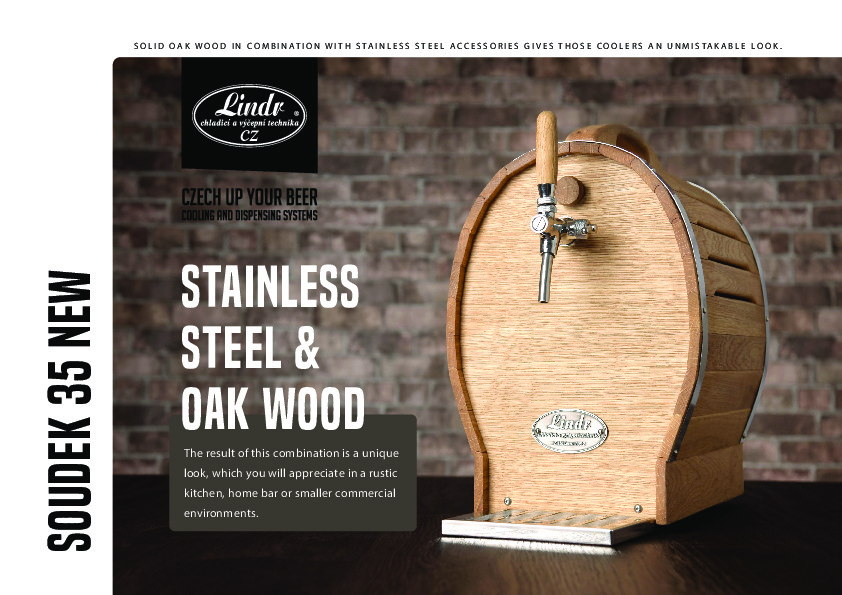

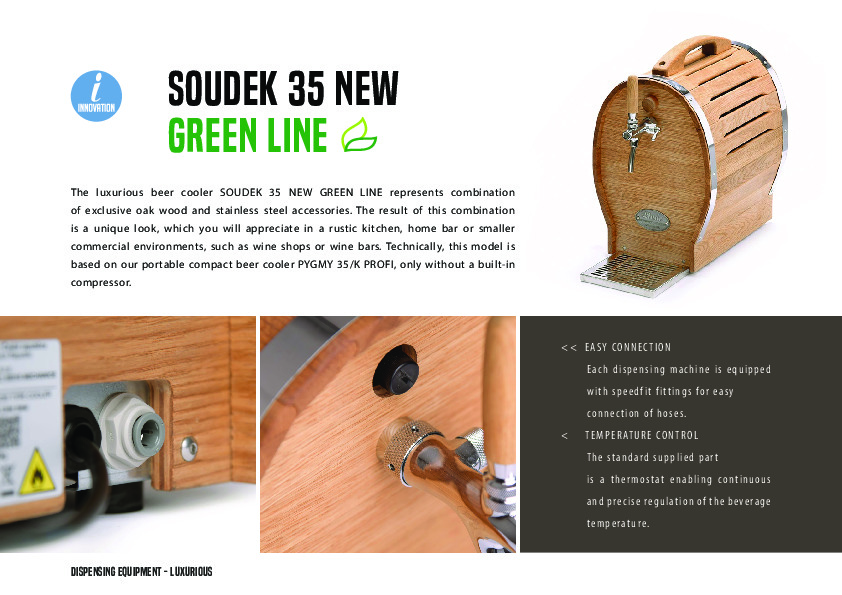

The luxurious beer cooler SOUDEK 35 NEW GREEN LINE represents combination of exclusive oak wood and stainless steel accessories. The result of this combination is a unique look, which you will appreciate in a rustic kitchen, home bar or smaller commercial environments, such as wine shops or wine bars. Technically, this model is based on our portable compact beer cooler PYGMY 35/K PROFI, only without a built-in compressor.
Benefits and useful features
- INNOVATION - All our luxury coolers are constantly evolving and meet all the latest safety standards and certifications (Czech and European).
- DESIGN - Solid oak wood in combination with stainless steel accessories gives those coolers an unmistakable look.
- STAINLESS STEEL TAP - We offer a choice with a stainless steel tap for bottling wine, which is optimal both in terms of durability and hygiene.
- PERFORMANCE - The SOUDEK series dispensing machines, with their increased continuous output 35-40 l/h, enable the continuous serving of 70-80 high-quality chilled beverages in quantities corresponding to their numerical designation in liters.
- GREEN LINE - LINDR GREEN LINE technology is environmentally friendly thanks to the use of ecological refrigerant R-290. Thanks to this design, each of the products achieves 20 % higher energy efficiency and 20 % lower electricity consumption. We produce energy savings system during its production.
- COOLING SPEED - The unique design of the cooling block with a perfectly tuned circuit guarantees not only the cooling of the beverage within a few minutes of switching on, but also the maintenance of a constant temperature if several beverages are dispensed in a short time.
- BEVERAGE VOLUME IN THE COOLING UNIT - A characteristic feature of our coolers is the large volume of beverage in the cooling block. Even the smallest models in the range of luxury coolers have a minimum of 0.5 l. The uniform inner diameter of the cooling coil (7 mm) from the dispense head to the tap guarantees cleanliness and optimal flow of the beverage.
- EQUIPMENT - The standard supplied part is a thermostat enabling continuous and precise regulation of the beverage temperature, a tap, a tap wrench, a drip tray and speedfit fittings for easy connection.
- OVERALL COMPACTNESS - SOUDEK portable coolers have the best ratio of performance, size and price on the market.
![vykres](/storage/helios/image/8d602880f8a868a2452a54c195c96fd5.png)
Technical details
SOUDEK 35 new Green Line
COOLING POWER OF THE COMPRESSOR (HP)
1/8
COOLING POWER OF THE COMPRESSOR (W)
310
MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)
40
CONTINOUS COOLING PERFORMANCE (L/HOUR)
35
THERMAL GRADIENT ΔT(°C)
10
AIR COMPRESSOR
NO
NUMBER OF TAPS
1
NUMBER OF COOLED BEVERAGES
1
LENGTH OF COOLING COILS (M)
16,5
DIAMETER OF COOLING COIL (MM)
7X8
POWER (W)
322
AMPERAGE (A)
1,40
NET WEIGHT (KG)
19.0
REFRIGERANT TYPE
R290
VOLTAGE (V)
220-240V 50HZ~1
BEVERAGE CONNECTION
SPEEDFIT FITTINGS 9,5mm (3/8")
CUSTOMIZED OPTIONS
CHOICE OF TAP
YES
STAINLESS STEEL SCREWING
YES
AIR CONNECTION SCREWING
NO
MOTIVE OF LIGHTING PANEL
NO
POWER CABLE PLUG
YES
Advantages SOUDEK 35 new Green Line
![MATERIAL COMBINATION](/storage/helios/image/9d2f95409a3e7f09788703f1eecce5ef.jpg)
MATERIAL COMBINATION
It's hard to imagine a more elegant combination of materials than solid oak and stainless steel.
![TAP HANDLE](/storage/helios/image/8057d12ad74303739d1a75ce1411991c.jpg)
TAP HANDLE
To emphasize the overall design, the cooler has a wooden tap handle.
![EASY CONNECTION](/storage/helios/image/66469966319ed11aa87bbfb34d295a19.jpg)
EASY CONNECTION
Each dispensing machine is equipped with speedfit fittings for easy connection of hoses.
![TEMPERATURE CONTROL](/storage/helios/image/8e05e2ab574e9823c992af7de5cc38c7.jpg)
TEMPERATURE CONTROL
The standard supplied part is a thermostat enabling continuous and precise regulation of the beverage temperature.
Instructions Luxurious - video
VIDEOTUTORIAL
How to connect one tap beer cooler LINDR - using CO2.
Luxury dry coolers
The luxury range is designed for demanding customers with specific requirements for the design. We use wooden accessories for some types of dispensing equipment.
