MAXIMUM COOLING CAPACITY (L/HOUR)

160

AIR COMPRESSOR

NO

NUMBER OF COOLED BEVERAGES

2

Innovation

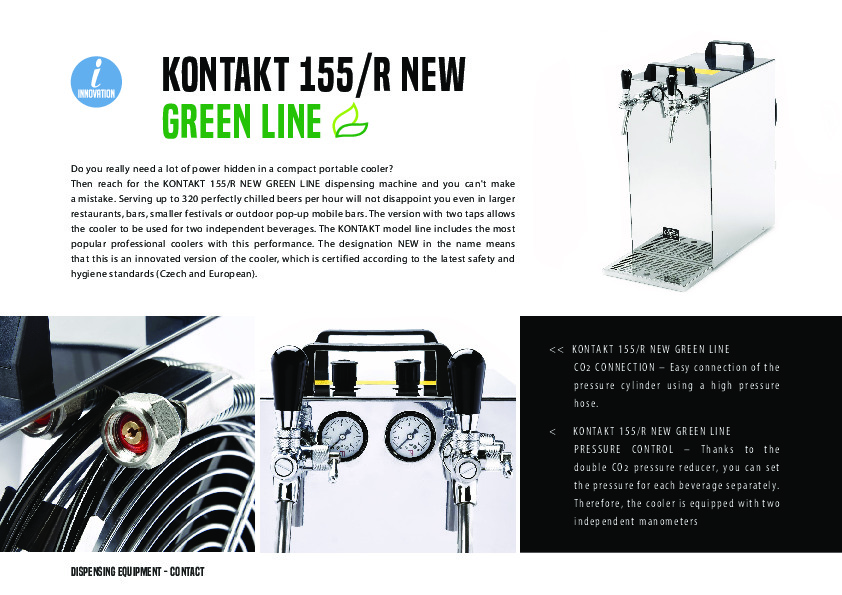

Do you really need a lot of power hidden in a compact portable cooler? Then reach for the KONTAKT 155/R NEW GREEN LINE dispensing machine and you can't make a mistake. Serving up to 320 perfectly chilled beers per hour will not disappoint you even in larger restaurants, bars, smaller festivals or outdoor pop-up mobile bars. The version with two taps allows the cooler to be used for two independent beverages. The KONTAKT model line includes the most popular professional coolers with this performance. The designation NEW in the name means that this is an innovated version of the cooler, which is certified according to the latest safety and hygiene standards (Czech and European).

Benefits and useful features

  • INNOVATION - All our contact coolers are constantly evolving and meet all the latest safety standards and certifications (Czech and European).
  • PERFORMANCE - KONTAKT 155 NEW GREEN LINE dispensing equipment with its increased continuous output of 120 - 160 l /hour allows the serving of about 240 - 320 perfectly chilled beverages in one hour.
  • GREEN LINE – LINDR GREEN LINE technology is environmentally friendly thanks to the use of eco-friendly refrigerant R-290. Thanks to this design, each product achieves 20 % higher energy efficiency and 20 % lower energy consumption. We have introduced an energy saving system in the production.
  • BEVERAGE VOLUME IN THE COOLING BLOCK - A characteristic feature of our coolers is the large volume of beverage in the cooling block. Models in the Kontakt 155 series have 2 l. The uniform inner diameter of the cooling coil (7 mm) from the dispense head to the tap guarantees cleanliness and optimal beverage flow.
  • DOUBLE PRESSURE REDUCER - Thanks to the built-in double PRESSURE REDUCER for connecting the CO2 cylinder, you can independently set the pressure on each line separately. Two manometers are also available.
  • EQUIPMENT - Thermostat enabling continuous and precise regulation of the beverage temperature, tap(s), tap wrench, drip tray and speed fittings for easy connection.
  • UNIVERSAL USE - This dispensing machine can also be used in combination with a dispense tower.
  • STAINLESS STEEL STRUCTURE - The complete structure and cooling coil are made of stainless steel. The materials used meet the highest requirements of hygienic standards and guarantee a long life.
  • OVERALL COMPACTNESS - KONTAKT series coolers have the best ratio of performance, dimensions and price on the market. The overall robustness of this model leaves no one in doubt that this cooler can deal with the company of several dozen thirsty people.
vykres

Technical details

KONTAKT 155/R new Green Line

COOLING POWER OF THE COMPRESSOR (HP)

3/4

COOLING POWER OF THE COMPRESSOR (W)

1550

MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)

160

CONTINOUS COOLING PERFORMANCE (L/HOUR)

120

THERMAL GRADIENT ΔT(°C)

10

AIR COMPRESSOR

NO

NUMBER OF TAPS

2

NUMBER OF COOLED BEVERAGES

2

LENGTH OF COOLING COILS (M)

26

DIAMETER OF COOLING COIL (MM)

7X8

POWER (W)

874

AMPERAGE (A)

3,80

NET WEIGHT (KG)

42.0

REFRIGERANT TYPE

R290

VOLTAGE (V)

220-240V 50HZ~1

BEVERAGE CONNECTION

SPEEDFIT FITTINGS 9,5mm (3/8")

CO2 CONNECTION

G3/4, W21,8

CUSTOMIZED OPTIONS

CHOICE OF TAP

YES

STAINLESS STEEL SCREWING

YES

AIR CONNECTION SCREWING

NO

POWER CABLE PLUG

YES

Advantages KONTAKT 155/R new Green Line

PRESSURE CONTROL

PRESSURE CONTROL

Thanks to the double CO2 pressure reducer, you can set the pressure for each beverage separately. Therefore, the cooler is equipped with two independent manometers

CO2 CONNECTION

CO2 CONNECTION

Easy connection of the pressure cylinder using a high pressure hose.

EASY TO CARRY

EASY TO CARRY

Easy and safe handling thanks to the small dimensions of the machine and the handles which are located on its upper part.

SPECIAL SUPPORT

SPECIAL SUPPORT

Rubber support for perfect stability and adhesion to any surface.

TEMPERATURE CONTROL

TEMPERATURE CONTROL

The standard supplied part is a thermostat enabling continuous and precise regulation of the beverage temperature.

EASY CONNECTION

EASY CONNECTION

Each dispensing machine is equipped with a speed fittings for easy connection of tubes.

FLOW CONTROL

FLOW CONTROL

Compensator taps allow continuous flow control.

DOWNLOAD PRODUCT LIST

Instructions Contact - video

Dry beer coolers

A complete range of professional table top beer coolers that are suitable for cooling and dispensing beer in households, for garden parties, bars and restaurants. The beer is chilled in the dry thermo block.
