MAXIMUM COOLING CAPACITY (L/HOUR)

25

AIR COMPRESSOR

YES

NUMBER OF COOLED BEVERAGES

1

Innovation

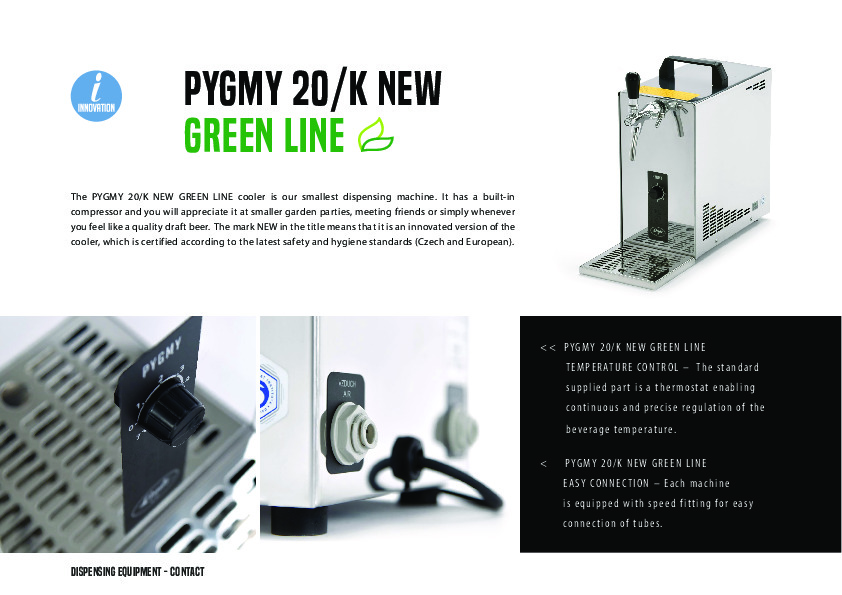

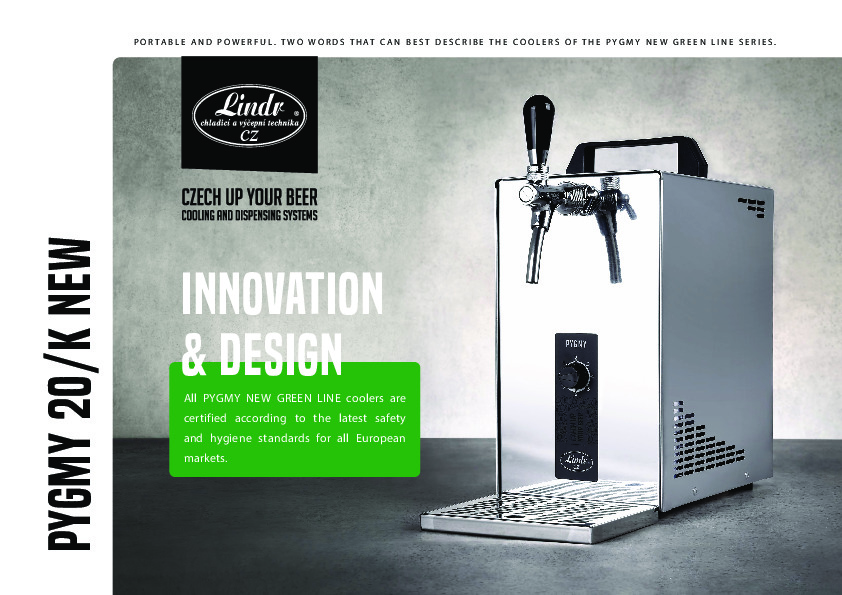

The PYGMY 20/K NEW GREEN LINE cooler is our smallest dispensing machine. It has a built-in compressor and you will appreciate it at smaller garden parties, meeting friends or simply whenever you feel like a quality draft beer. The mark NEW in the title means that it is an innovated version of the cooler, which is certified according to the latest safety and hygiene standards (Czech and European).

Benefits and useful features

  • INNOVATION – All our contact coolers are constantly evolving and meet all the latest safety standards and certifications (Czech and European).
  • PERFORMANCE – The PYGMY 20/K GREEN LINE NEW, with its increased continuous output 20-25l/h, enables the continuous serving of 40-50 high-quality chilled beverages during one hour.
  • GREEN LINE – LINDR GREEN LINE technology is environmentally friendly thanks to the use of eco-friendly refrigerant R-290. Thanks to this design, each product achieves 20 % higher energy efficiency and 20 % lower energy consumption. We have introduced an energy saving system in the production.
  • COOLING SPEED - The unique design of the cooling block with a perfectly tuned circuit guarantees not only the cooling of the beverage within a few minutes of switching on, but also the maintenance of a constant temperature if several beverages are dispensed in a short time.
  • BEVERAGE VOLUME IN THE COOLING BLOCK - A characteristic feature of our coolers is the large volume of beverage in the cooling block. Even the smallest models in the PYGMY series have a minimum of 0.5 l. The uniform inner diameter of the cooling coil (7 mm) from the dispense head to the tap guarantees cleanliness and optimal beverage flow.
  • AIR FILTER - Because the quality of the dispensed beverage comes first for us, all our dispensing machines with a built-in air compressor are equipped with a molecular filter for incoming air.
  • EQUIPMENT – The standard supplied part is a thermostat enabling continuous and precise regulation of the beverage temperature, a tap, a tap wrench, a drip tray and speed fittings for easy connection.
  • UNIVERSAL USE – The dispensing machine can also be used in combination with a dispense tower.
  • STAINLESS STEEL STRUCTURE – The complete structure and cooling coils are made of stainless steel. The materials used meet the highest requirements of hygienic standards and guarantee a long life.
  • OVERALL COMPACTNESS – PYGMY portable coolers have the best ratio of performance, size and price on the market.
vykres

Technical details

PYGMY 20/K NEW GREEN LINE

COOLING POWER OF THE COMPRESSOR (HP)

1/8

COOLING POWER OF THE COMPRESSOR (W)

280

MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)

25

CONTINOUS COOLING PERFORMANCE (L/HOUR)

20

THERMAL GRADIENT ΔT(°C)

10

AIR COMPRESSOR

YES

AIR COMPRESSOR PRESSURE (BAR)

automatic 2,8-3,2

NUMBER OF TAPS

1

NUMBER OF COOLED BEVERAGES

1

LENGTH OF COOLING COILS (M)

10,5

DIAMETER OF COOLING COIL (MM)

7x8

POWER (W)

322

AMPERAGE (A)

1,40

NET WEIGHT (KG)

16.5

REFRIGERANT TYPE

R290

VOLTAGE (V)

220-240V 50Hz~1

BEVERAGE CONNECTION

SPEEDFIT FITTINGS 9,5mm (3/8")

AIR CONNECTION

SPEEDFIT FITTINGS 8mm (5/16")

CUSTOMIZED OPTIONS

CHOICE OF TAP

YES

STAINLESS STEEL SCREWING

YES

AIR CONNECTION SCREWING

YES

POWER CABLE PLUG

YES

Advantages PYGMY 20/K NEW GREEN LINE

EASY TO CARRY

EASY TO CARRY

Easy and safe handling thanks to the small dimensions of this dispenisng machine and the handle, which is located on its upper part.

TEMPERATURE CONTROL

TEMPERATURE CONTROL

The standard supplied part is a thermostat enabling continuous and precise regulation of the beverage temperature.

EASY CONNECTION

EASY CONNECTION

Each machine is equipped with speed fitting for easy connection of tubes.

DOWNLOAD PRODUCT LIST

Instructions Contact - video

Dry beer coolers

A complete range of professional table top beer coolers that are suitable for cooling and dispensing beer in households, for garden parties, bars and restaurants. The beer is chilled in the dry thermo block.

VIDEOTUTORIAL

How to connect one tap beer cooler LINDR - using inbuilt air compressor.

It may be useful

Catalog

Product catalogue

Service list

Service sheet

Manual

Manual
