MAXIMUM COOLING CAPACITY (L/HOUR)

50

AIR COMPRESSOR

YES

NUMBER OF COOLED BEVERAGES

2

115V/60Hz

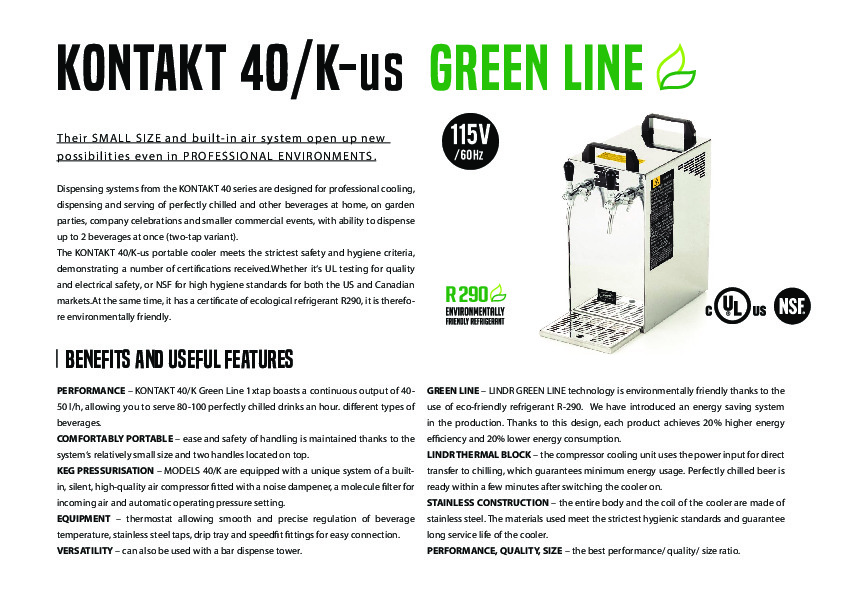

Dispensing systems from the KONTAKT 40 series are designed for professional cooling, dispensing and serving of perfectly chilled and other beverages at home, on garden parties, company celebrations and smaller commercial events, with ability to dispense up to 2 beverages at once (two-tap variant). Their small size and built-in air system open up new possibilities even in professional environments

Benefits and useful features

  • PERFORMANCE – KONTAKT 40/K Green Line 1xtap boasts a continuous output of 40-50 l/h, allowing you to serve 80-100 perfectly chilled drinks an hour. different types of beverages.
  • COMFORTABLY PORTABLE – ease and safety of handling is maintained thanks to the system's relatively small size and two handles located on top.
  • KEG PRESSURISATION – MODELS KONTAKT 40/K 1x tap and 40/K are equipped with a unique system of a built-in, silent, high-quality air compressor fitted with a noise dampener, a molecule filter for incoming air and automatic operating pressure setting.
  • EQUIPMENT – thermostat allowing smooth and precise regulation of beverage temperature, dispensing tap(s), drip tray and speedfit fittings for easy connection.
  • VERSATILITY – can also be used with a bar dispense tower.
  • GREEN LINE – LINDR GREEN LINE technology is environmentally friendly thanks to the use of eco-friendly refrigerant R-290. Thanks to this design, each product achieves 20 % higher energy efficiency and 20 % lower energy consumption. We have introduced an energy saving system in the production.
  • LINDR THERMAL BLOCK – the compressor cooling unit uses the power input for direct transfer to chilling, which guarantees minimum energy usage. Perfectly chilled beer is ready within a few minutes after switching the cooler on.
  • STAINLESS CONSTRUCTION – the entire body and the coil of the cooler are made of stainless steel. The materials used meet the strictest hygienic standards and guarantee long service life of the cooler.
  • PERFORMANCE, QUALITY, SIZE – the best performance/ quality/ size ratio.
  • CERTIFICATE - The cooler meets the strictest safety and hygiene criteria, as evidenced by the number of certifications it has received.Whether the one from UL's quality and electrical safety testing laboratory or the NSF's high hygiene standards, both are intended for the US and Canadian markets.At the same time, it has a certificate of ecological refrigerant R290, so it is environmentally friendly.
vykres

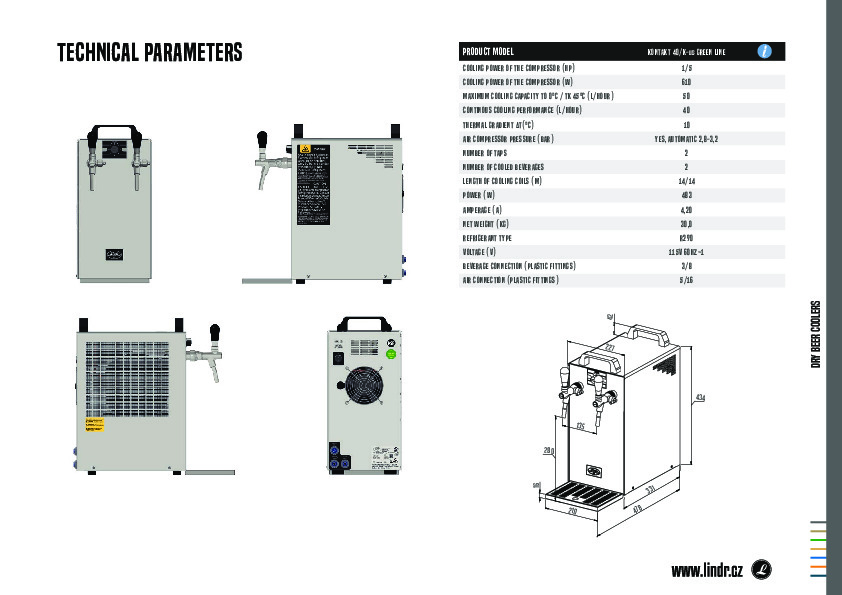

Technical details

KONTAKT 40/K-us Green Line

COOLING POWER OF THE COMPRESSOR (HP)

1/5

COOLING POWER OF THE COMPRESSOR (W)

610

MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)

50

CONTINOUS COOLING PERFORMANCE (L/HOUR)

40

THERMAL GRADIENT ΔT(°C)

10

AIR COMPRESSOR

YES

AIR COMPRESSOR PRESSURE (BAR)

automatic 2,8-3,2

NUMBER OF TAPS

2

NUMBER OF COOLED BEVERAGES

2

LENGTH OF COOLING COILS (M)

2x14

DIAMETER OF COOLING COIL (MM)

7x8

POWER (W)

483

AMPERAGE (A)

4,20

NET WEIGHT (KG)

29.5

REFRIGERANT TYPE

R290

VOLTAGE (V)

115V 60Hz~1

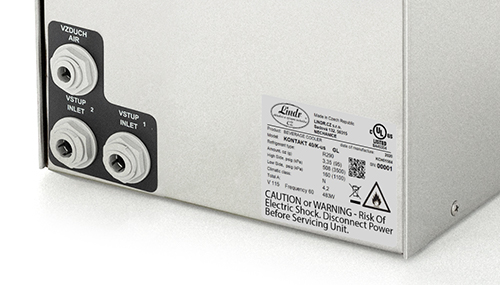

BEVERAGE CONNECTION

SPEEDFIT FITTINGS 9,5mm (3/8")

AIR CONNECTION

SPEEDFIT FITTINGS 8mm (5/16")

Advantages KONTAKT 40/K-us Green Line

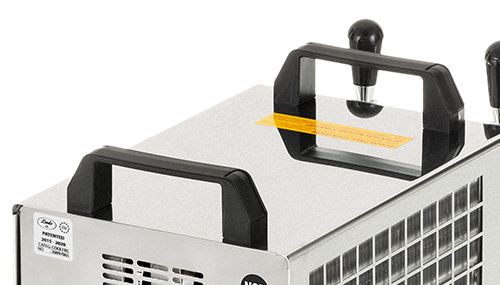

COMFORTABLY PORTABLE

COMFORTABLY PORTABLE

Ease and safety of handling is maintained thanks to the system's relatively small size and two handles located on top.

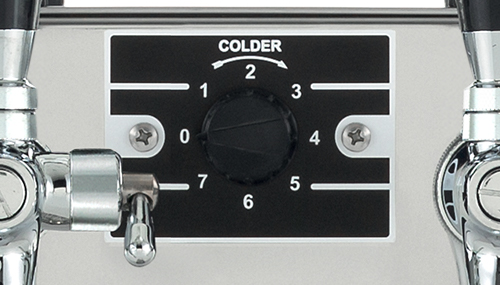

THERMAL REGULATION

THERMAL REGULATION

Thermostat allowing smooth and precise regulation of beverage temperature.

AIR COMPRESSOR

AIR COMPRESSOR

Model KONTAKT 40/K-us GL is equipped with a unique system of a built-in, silent, high-quality air compressor fitted with a noise dampener, a molecule filter for incoming air and automatic operating pressure setting.

CERTIFICATIONS

CERTIFICATIONS

The cooler meets the strictest safety and hygiene criteria, as evidenced by the number of certifications it has received.Whether the one from UL's quality and electrical safety testing laboratory or the NSF's high hygiene standards, both are intended for the US and Canadian markets.At the same time, it has a certificate of ecological refrigerant R290, so it is environmentally friendly.
