AS-450 Unlimited
Green Line
MAXIMUM COOLING CAPACITY (L/HOUR)
450
DISPLACEMENT OF RECIRCULATION PUMP (M)
12
NUMBER OF COOLED BEVERAGES
Variable

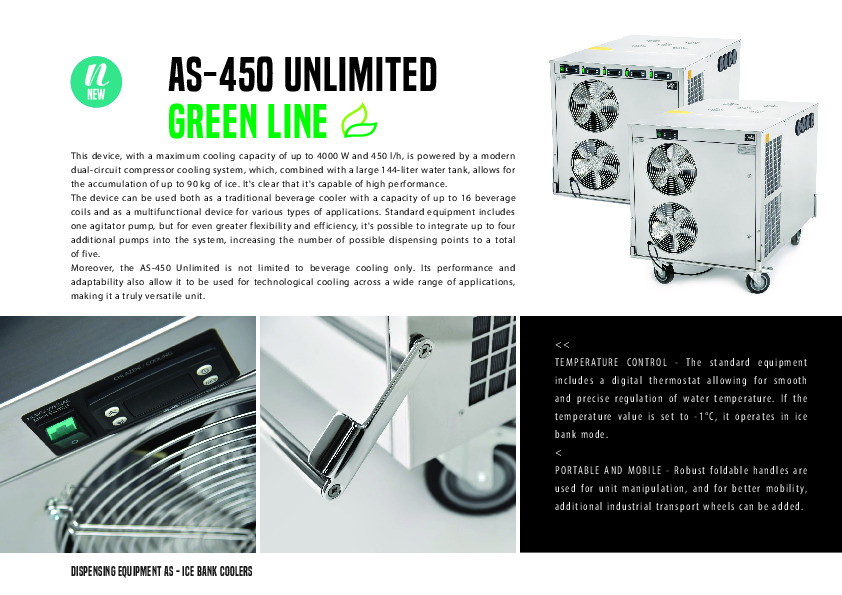

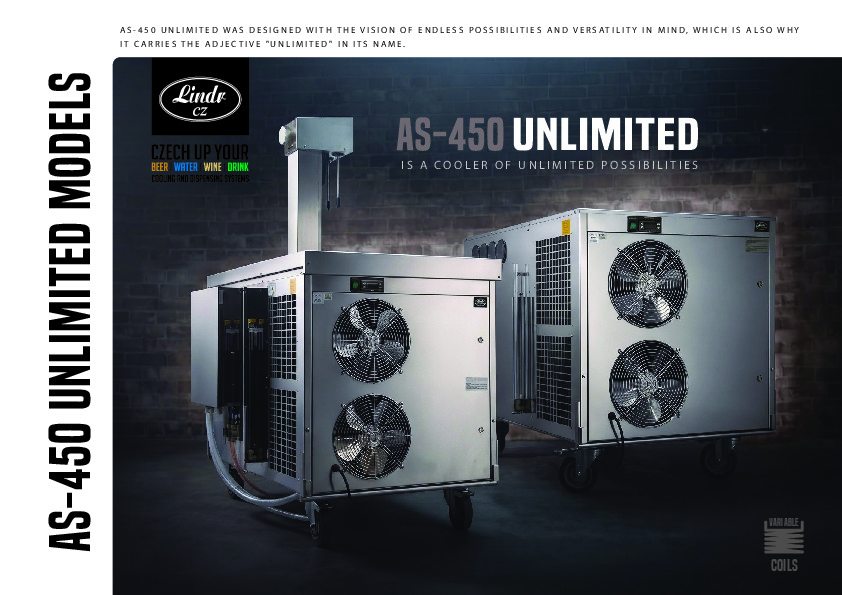

AS-450 Unlimited was designed with the vision of endless possibilities and versatility in mind, which is also why it carries the adjective "Unlimited" in its name. This device, with a maximum cooling capacity of up to 4000 W and 450 l/h, is powered by a modern dual-circuit compressor cooling system, which, combined with a large 144-liter water tank, allows for the accumulation of up to 90 kg of ice. It's clear that it's capable of high performance. The device can be used both as a traditional beverage cooler with a capacity of up to 16 beverage coils and as a multifunctional device for various types of applications. Standard equipment includes one agitator pump, but for even greater flexibility and efficiency, it's possible to integrate up to four additional pumps into the system, increasing the number of possible dispensing points to a total of five. Additionally, a third cooling circuit with a glycol tank and the ability to adjust the temperature down to -10°C can be installed in the cooler. Together with a powerful pump for long-distance python cooling, it becomes an ideal solution for extensive installation applications.
Benefits and useful features
- INNOVATION – All of our watercoolers undergo continuous development and meet all the latest safety standards and certifications (Czech and European).
- AS TECHNOLOGY – Water cooling technology with an ice bank, where full ice supply provides maximum cooling performance.
- PERFORMANCE – The AS NEW GREEN LINE tapping equipment, with its increased continuous output, allows for the continuous serving of quality chilled beverages in quantities corresponding to their numerical marking in litres.
- CENTRAL AGITATOR PUMP - The cooler includes a central agitator pump NRG 12 with a discharge of 12m.
- GREEN LINE – The LINDR GREEN LINE technology is environmentally friendly thanks to the use of the eco-friendly refrigerant R-290. Thanks to this design, each product achieves 20% higher energy efficiency and 20% lower power consumption.We have introduced an energy saving system in the production.
- DURABLE SURFACE – The cooler is made of stainless steel material.
- CONSTRUCTION AND SERVICE – The modern layout of the cooling technology guarantees easy accessibility for any service and maintenance.
- EQUIPMENT - The basic equipment includes a central agitator pump. Other equipment is at the customer's choice.
- OVERALL COMPACTNESS - AS series coolers have the best ratio of performance, dimensions, and price on the market.
Technical details
AS-450 Unlimited Green line
COOLING POWER OF THE COMPRESSOR (HP)
2x 3/4
COOLING POWER OF THE COMPRESSOR (W)
2x 2000
MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)
450
CONTINOUS COOLING PERFORMANCE (L/HOUR)
380
THERMAL GRADIENT ΔT(°C)
10
WATER TANK VOLUME (L)
144
ICE BANK (KG)
90
DISPLACEMENT OF RECIRCULATION PUMP (M)
12
RECIRCULATION CONNECTION
1/2
NUMBER OF COOLED BEVERAGES
Variable
POWER (W)
1380
AMPERAGE (A)
6
NET WEIGHT (KG)
120
REFRIGERANT TYPE
R290
VOLTAGE (V)
220-240V 50Hz~1
WATER DRAIN WITH WATERMARK
YES
DIGITAL THERMOSTAT
YES
CUSTOMIZED OPTIONS
MIXER WITH PUMP (PCS)
Variable - max. +4
LENGTH OF COOLING COILS (M)
Variable - 4x (2x10, 2x14)
DIAMETER OF COOLING COIL (MM)
Variable - 7x8, 9x10
NUMBER OF COOLED BEVERAGES
Variable - max.16
INDUSTRIAL WHEELS
YES
POWER CABLE PLUG
YES
DIGITAL THERMOSTAT
Variable - max. +4
Advantages AS-450 Unlimited Green line
TEMPERATURE CONTROL
The standard equipment includes a digital thermostat allowing for smooth and precise regulation of water temperature. If the temperature value is set to -1°C, it operates in ice bank mode.
DURABLE SURFACE
The cooler is made of stainless steel material.
PORTABLE AND MOBILE
Robust foldable handles are used for unit manipulation, and for better mobility, additional industrial transport wheels can be added.
WATER LEVEL GAUGE
The device is equipped with a water level gauge, allowing for easy monitoring of the water level. The 1/2'' valve is used for easy water drainage.
MAXIMUM PERFORMANCE
The dual-circuit cooling system ensures a maximum performance of up to 4000 W.
NUMBER OF DISPENSING PLACES
Up to four additional pumps can be integrated into the system, thereby increasing the number of possible dispensing points to a total of five.
DOWNLOAD PRODUCT LIST
Instructions Water AS - video
Undercounter AS coolers
Undercounter beer coolers are always used in combination with the dispense tower. Beer cooler can be placed under the counter in the bar or restaurant area. The water in these machines helps to transfer the cold in the beer lines and also accumulates the cold.
